Schema documentation for localInterferences.xsd

Showing:

Annotations

Diagrams

Facets

Instances

Model

Properties

Source

Used by

Included schema localInterferences.xsd

Namespace

urn:xml-gov-au:icsm:egeodesy:0.4

Annotations

<p>Derived from SOPAC IGS Site Log XML Schema 2011</p>
<ul>
  <li>http://sopac.ucsd.edu/ns/geodesy/doc/igsSiteLog/localInterferences/2004/baseLocalInterferencesLib.xsd</li>
  <li>http://sopac.ucsd.edu/ns/geodesy/doc/igsSiteLog/localInterferences/2004/localEvents.xsd</li>
  <li>http://sopac.ucsd.edu/ns/geodesy/doc/igsSiteLog/localInterferences/2004/localInterferences.xsd</li>
  <li>http://sopac.ucsd.edu/ns/geodesy/doc/igsSiteLog/localInterferences/2004/radioInterferences.xsd</li>
</ul>
<p>Modifications from original</p>
<ul>
  <li>Made part of eGeodesy namespace</li>
  <li>Made all interference types extend gml:AbstractFeatureType</li>
  <li>Changed date range elements to be references to gml:validTime</li>
  <li>Adopted GML conventions of global elements and property references</li>
  <li>Changed pluralised elements to singular forms</li>
</ul>

Properties

attribute form default	unqualified
element form default	qualified
version	0.4

Schema location

file:/Users/boss/dev/GeodesyML/schemas/localInterferences.xsd

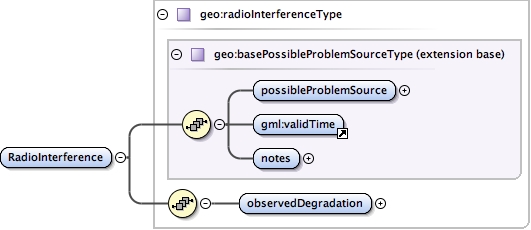

Element geo:RadioInterference

Namespace

urn:xml-gov-au:icsm:egeodesy:0.4

Diagram

Type

geo:radioInterferenceType

Type hierarchy

AbstractFeatureType
- geo:basePossibleProblemSourceType
  - geo:radioInterferenceType

Properties

content

complex

Substitution Group Affiliation

AbstractFeature

Used by

Complex Type

geo:radioInterferencePropertyType

Model

geo:possibleProblemSource , validTime , geo:notes , geo:observedDegradation

Children

geo:notes, geo:observedDegradation, geo:possibleProblemSource, validTime

Instance

<geo:RadioInterference xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <geo:possibleProblemSource>{1,1}</geo:possibleProblemSource>
  <validTime>{1,1}</validTime>
  <geo:notes>{1,1}</geo:notes>
  <geo:observedDegradation>{1,1}</geo:observedDegradation>
</geo:RadioInterference>

Source

<element name="RadioInterference" substitutionGroup="gml:AbstractFeature" type="geo:radioInterferenceType"/>

Schema location

file:/Users/boss/dev/GeodesyML/schemas/localInterferences.xsd

Element geo:basePossibleProblemSourceType / geo:possibleProblemSource

Namespace

urn:xml-gov-au:icsm:egeodesy:0.4

Diagram

Type

string

Properties

content

simple

Source

<element name="possibleProblemSource" type="string"/>

Schema location

file:/Users/boss/dev/GeodesyML/schemas/localInterferences.xsd

Element geo:basePossibleProblemSourceType / geo:notes

Namespace

urn:xml-gov-au:icsm:egeodesy:0.4

Diagram

Type

string

Properties

content

simple

Source

<element name="notes" type="string"/>

Schema location

file:/Users/boss/dev/GeodesyML/schemas/localInterferences.xsd

Element geo:radioInterferenceType / geo:observedDegradation

Namespace

urn:xml-gov-au:icsm:egeodesy:0.4

Diagram

Type

string

Properties

content

simple

Source

<element name="observedDegradation" type="string"/>

Schema location

file:/Users/boss/dev/GeodesyML/schemas/localInterferences.xsd

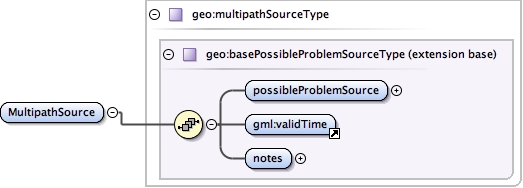

Element geo:MultipathSource

Namespace

urn:xml-gov-au:icsm:egeodesy:0.4

Diagram

Type

geo:multipathSourceType

Type hierarchy

AbstractFeatureType
- geo:basePossibleProblemSourceType
  - geo:multipathSourceType

Properties

content

complex

Substitution Group Affiliation

AbstractFeature

Used by

Complex Type

geo:multipathSourcePropertyType

Model

geo:possibleProblemSource , validTime , geo:notes

Children

geo:notes, geo:possibleProblemSource, validTime

Instance

<geo:MultipathSource xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <geo:possibleProblemSource>{1,1}</geo:possibleProblemSource>
  <validTime>{1,1}</validTime>
  <geo:notes>{1,1}</geo:notes>
</geo:MultipathSource>

Source

<element name="MultipathSource" substitutionGroup="gml:AbstractFeature" type="geo:multipathSourceType"/>

Schema location

file:/Users/boss/dev/GeodesyML/schemas/localInterferences.xsd

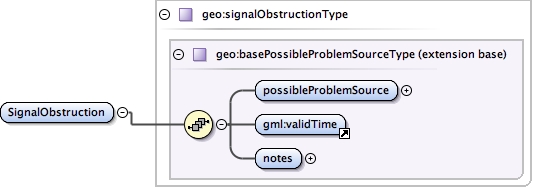

Element geo:SignalObstruction

Namespace

urn:xml-gov-au:icsm:egeodesy:0.4

Diagram

Type

geo:signalObstructionType

Type hierarchy

AbstractFeatureType
- geo:basePossibleProblemSourceType
  - geo:signalObstructionType

Properties

content

complex

Substitution Group Affiliation

AbstractFeature

Used by

Complex Type

geo:signalObstructionPropertyType

Model

geo:possibleProblemSource , validTime , geo:notes

Children

geo:notes, geo:possibleProblemSource, validTime

Instance

<geo:SignalObstruction xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <geo:possibleProblemSource>{1,1}</geo:possibleProblemSource>
  <validTime>{1,1}</validTime>
  <geo:notes>{1,1}</geo:notes>
</geo:SignalObstruction>

Source

<element name="SignalObstruction" substitutionGroup="gml:AbstractFeature" type="geo:signalObstructionType"/>

Schema location

file:/Users/boss/dev/GeodesyML/schemas/localInterferences.xsd

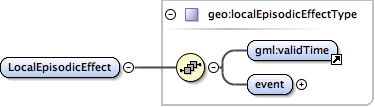

Element geo:LocalEpisodicEffect

Namespace

urn:xml-gov-au:icsm:egeodesy:0.4

Diagram

Type

geo:localEpisodicEffectType

Type hierarchy

AbstractFeatureType
- geo:localEpisodicEffectType

Properties

content

complex

Substitution Group Affiliation

AbstractFeature

Used by

Complex Type

geo:localEpisodicEffectPropertyType

Model

validTime , geo:event

Children

geo:event, validTime

Instance

<geo:LocalEpisodicEffect xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <validTime>{1,1}</validTime>
  <geo:event>{1,1}</geo:event>
</geo:LocalEpisodicEffect>

Source

<element name="LocalEpisodicEffect" substitutionGroup="gml:AbstractFeature" type="geo:localEpisodicEffectType"/>

Schema location

file:/Users/boss/dev/GeodesyML/schemas/localInterferences.xsd

Element geo:localEpisodicEffectType / geo:event

Namespace

urn:xml-gov-au:icsm:egeodesy:0.4

Diagram

Type

string

Properties

content

simple

Source

<element name="event" type="string"/>

Schema location

file:/Users/boss/dev/GeodesyML/schemas/localInterferences.xsd

Complex Type geo:radioInterferencePropertyType

Namespace

urn:xml-gov-au:icsm:egeodesy:0.4

Diagram

Used by

Element

geo:SiteLogType/geo:radioInterference

Model

geo:RadioInterference , geo:dateInserted , geo:dateDeleted{0,1} , geo:deletedReason{0,1}

Children

geo:RadioInterference, geo:dateDeleted, geo:dateInserted, geo:deletedReason

Source

<complexType name="radioInterferencePropertyType">
  <sequence>
    <sequence minOccurs="0">
      <element ref="geo:RadioInterference"/>
    </sequence>
    <group ref="geo:ChangeTracking"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
</complexType>

Schema location

file:/Users/boss/dev/GeodesyML/schemas/localInterferences.xsd

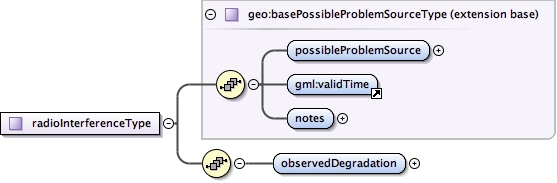

Complex Type geo:radioInterferenceType

Namespace

urn:xml-gov-au:icsm:egeodesy:0.4

Diagram

Type

extension of geo:basePossibleProblemSourceType

Type hierarchy

AbstractFeatureType
- geo:basePossibleProblemSourceType
  - geo:radioInterferenceType

Used by

Element

geo:RadioInterference

Model

geo:possibleProblemSource , validTime , geo:notes , geo:observedDegradation

Children

geo:notes, geo:observedDegradation, geo:possibleProblemSource, validTime

Source

<complexType name="radioInterferenceType">
  <complexContent>
    <extension base="geo:basePossibleProblemSourceType">
      <sequence>
        <element name="observedDegradation" type="string"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>

Schema location

file:/Users/boss/dev/GeodesyML/schemas/localInterferences.xsd

Complex Type geo:basePossibleProblemSourceType

Namespace

urn:xml-gov-au:icsm:egeodesy:0.4

Diagram

Type

extension of AbstractFeatureType

Type hierarchy

AbstractFeatureType
- geo:basePossibleProblemSourceType

Used by

Complex Types

geo:multipathSourceType, geo:radioInterferenceType, geo:signalObstructionType

Model

geo:possibleProblemSource , validTime , geo:notes

Children

geo:notes, geo:possibleProblemSource, validTime

Source

<complexType name="basePossibleProblemSourceType">
  <complexContent>
    <extension base="gml:AbstractFeatureType">
      <sequence>
        <element name="possibleProblemSource" type="string"/>
        <element ref="gml:validTime"/>
        <element name="notes" type="string"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>

Schema location

file:/Users/boss/dev/GeodesyML/schemas/localInterferences.xsd

Complex Type geo:multipathSourcePropertyType

Namespace

urn:xml-gov-au:icsm:egeodesy:0.4

Diagram

Used by

Element

geo:SiteLogType/geo:multipathSource

Model

geo:MultipathSource , geo:dateInserted , geo:dateDeleted{0,1} , geo:deletedReason{0,1}

Children

geo:MultipathSource, geo:dateDeleted, geo:dateInserted, geo:deletedReason

Source

<complexType name="multipathSourcePropertyType">
  <sequence>
    <sequence minOccurs="0">
      <element ref="geo:MultipathSource"/>
    </sequence>
    <group ref="geo:ChangeTracking"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
</complexType>

Schema location

file:/Users/boss/dev/GeodesyML/schemas/localInterferences.xsd

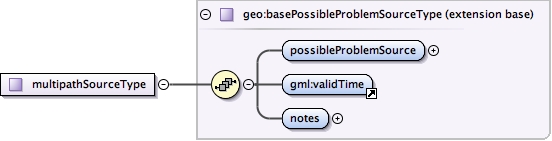

Complex Type geo:multipathSourceType

Namespace

urn:xml-gov-au:icsm:egeodesy:0.4

Diagram

Type

extension of geo:basePossibleProblemSourceType

Type hierarchy

AbstractFeatureType
- geo:basePossibleProblemSourceType
  - geo:multipathSourceType

Used by

Element

geo:MultipathSource

Model

geo:possibleProblemSource , validTime , geo:notes

Children

geo:notes, geo:possibleProblemSource, validTime

Source

<complexType name="multipathSourceType">
  <complexContent>
    <extension base="geo:basePossibleProblemSourceType"/>
  </complexContent>
</complexType>

Schema location

file:/Users/boss/dev/GeodesyML/schemas/localInterferences.xsd

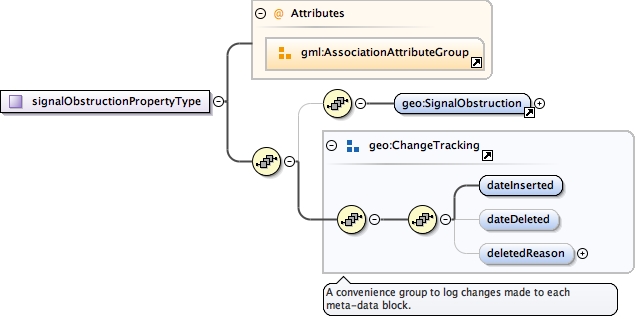

Complex Type geo:signalObstructionPropertyType

Namespace

urn:xml-gov-au:icsm:egeodesy:0.4

Diagram

Used by

Element

geo:SiteLogType/geo:signalObstruction

Model

geo:SignalObstruction , geo:dateInserted , geo:dateDeleted{0,1} , geo:deletedReason{0,1}

Children

geo:SignalObstruction, geo:dateDeleted, geo:dateInserted, geo:deletedReason

Source

<complexType name="signalObstructionPropertyType">
  <sequence>
    <sequence minOccurs="0">
      <element ref="geo:SignalObstruction"/>
    </sequence>
    <group ref="geo:ChangeTracking"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
</complexType>

Schema location

file:/Users/boss/dev/GeodesyML/schemas/localInterferences.xsd

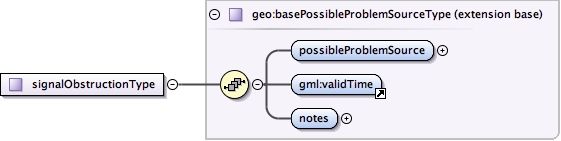

Complex Type geo:signalObstructionType

Namespace

urn:xml-gov-au:icsm:egeodesy:0.4

Diagram

Type

extension of geo:basePossibleProblemSourceType

Type hierarchy

AbstractFeatureType
- geo:basePossibleProblemSourceType
  - geo:signalObstructionType

Used by

Element

geo:SignalObstruction

Model

geo:possibleProblemSource , validTime , geo:notes

Children

geo:notes, geo:possibleProblemSource, validTime

Source

<complexType name="signalObstructionType">
  <complexContent>
    <extension base="geo:basePossibleProblemSourceType"/>
  </complexContent>
</complexType>

Schema location

file:/Users/boss/dev/GeodesyML/schemas/localInterferences.xsd

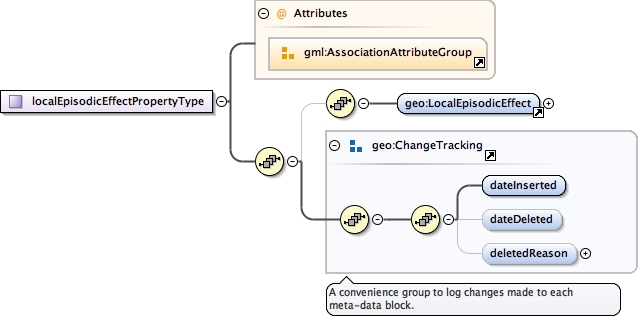

Complex Type geo:localEpisodicEffectPropertyType

Namespace

urn:xml-gov-au:icsm:egeodesy:0.4

Diagram

Used by

Element

geo:SiteLogType/geo:localEpisodicEffect

Model

geo:LocalEpisodicEffect , geo:dateInserted , geo:dateDeleted{0,1} , geo:deletedReason{0,1}

Children

geo:LocalEpisodicEffect, geo:dateDeleted, geo:dateInserted, geo:deletedReason

Source

<complexType name="localEpisodicEffectPropertyType">
  <sequence>
    <sequence minOccurs="0">
      <element ref="geo:LocalEpisodicEffect"/>
    </sequence>
    <group ref="geo:ChangeTracking"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
</complexType>

Schema location

file:/Users/boss/dev/GeodesyML/schemas/localInterferences.xsd

Complex Type geo:localEpisodicEffectType

Namespace

urn:xml-gov-au:icsm:egeodesy:0.4

Diagram

Type

extension of AbstractFeatureType

Type hierarchy

AbstractFeatureType
- geo:localEpisodicEffectType

Used by

Element

geo:LocalEpisodicEffect

Model

validTime , geo:event

Children

geo:event, validTime

Source

<complexType name="localEpisodicEffectType">
  <complexContent>
    <extension base="gml:AbstractFeatureType">
      <sequence>
        <element ref="gml:validTime"/>
        <element name="event" type="string"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>

Schema location

file:/Users/boss/dev/GeodesyML/schemas/localInterferences.xsd

Simple Type geo:baseLocalInterferenceType

Namespace

urn:xml-gov-au:icsm:egeodesy:0.4

Diagram

Type

restriction of string

Properties

final

restriction, list, union

Facets

enumeration	TV
enumeration	CELL PHONE
enumeration	ANTENNA
enumeration	RADAR
enumeration	METAL ROOF
enumeration	DOME
enumeration	VLBI ANTENNA
enumeration	TREES
enumeration	BUILDINGS

Source

<simpleType final="#all" name="baseLocalInterferenceType">
  <restriction base="string">
    <enumeration value="TV"/>
    <enumeration value="CELL PHONE"/>
    <enumeration value="ANTENNA"/>
    <enumeration value="RADAR"/>
    <enumeration value="METAL ROOF"/>
    <enumeration value="DOME"/>
    <enumeration value="VLBI ANTENNA"/>
    <enumeration value="TREES"/>
    <enumeration value="BUILDINGS"/>
  </restriction>
</simpleType>

Schema location

file:/Users/boss/dev/GeodesyML/schemas/localInterferences.xsd
