Showing:

Annotations
Attributes
Diagrams
Instances
Model
Properties
Source
Used by
Included schema fieldMeasurement.xsd
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Annotations
Properties
attribute form default unqualified
element form default qualified
version 0.4
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Element geo:Sensor
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram fieldMeasurement_xsd.tmp#SensorType_type fieldMeasurement_xsd.tmp#SensorType equipment_xsd.tmp#HumiditySensor equipment_xsd.tmp#PressureSensor equipment_xsd.tmp#TemperatureSensor equipment_xsd.tmp#WaterVaporSensor
Type geo:SensorType
Type hierarchy
Properties
content complex
Substitution Group
Substitution Group Affiliation
  • AbstractGML
Used by
Model
Children geo:type
Instance

<geo:Sensor xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <geo:type>{0,1}</geo:type>
</geo:Sensor>
Source

<element name="Sensor" substitutionGroup="gml:AbstractGML" type="geo:SensorType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Element geo:SensorType / geo:type
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type CodeType
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="type" type="gml:CodeType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd

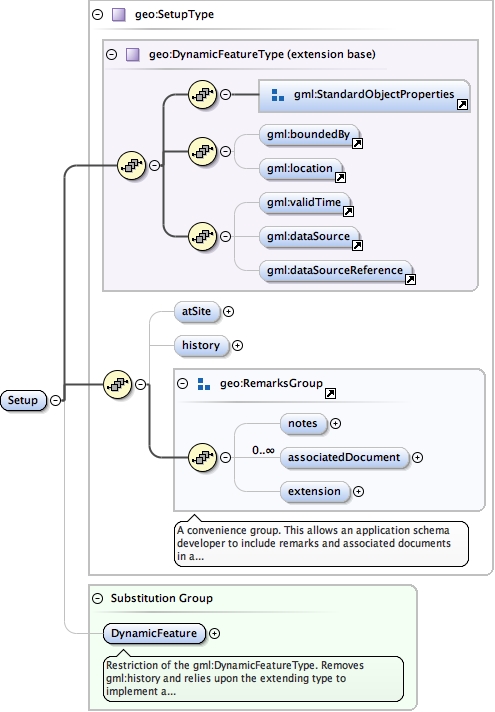

Element geo:Setup
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram commonTypes_xsd.tmp#DynamicFeatureType fieldMeasurement_xsd.tmp#SetupType_atSite fieldMeasurement_xsd.tmp#SetupType_history commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup fieldMeasurement_xsd.tmp#SetupType commonTypes_xsd.tmp#DynamicFeature

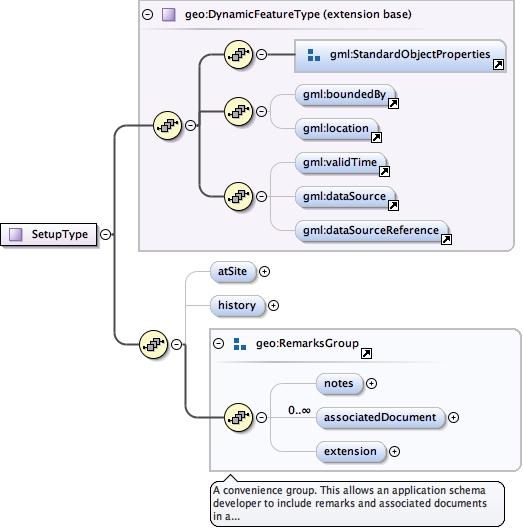

Type geo:SetupType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
, boundedBy{0,1} , location{0,1} , validTime{0,1} , dataSource{0,1} , dataSourceReference{0,1} , geo:atSite{0,1} , geo:history{0,1} , geo:notes{0,1} , geo:associatedDocument* , geo:extension{0,1}
Children boundedBy, dataSource, dataSourceReference, geo:associatedDocument, geo:atSite, geo:extension, geo:history, geo:notes, location, validTime
Instance

<geo:Setup xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <boundedBy>{0,1}</boundedBy>
  <location>{0,1}</location>
  <validTime>{0,1}</validTime>
  <dataSource>{0,1}</dataSource>
  <dataSourceReference>{0,1}</dataSourceReference>
  <geo:atSite>{0,1}</geo:atSite>
  <geo:history>{0,1}</geo:history>
  <geo:notes>{0,1}</geo:notes>
  <geo:associatedDocument>{0,unbounded}</geo:associatedDocument>
  <geo:extension>{0,1}</geo:extension>
</geo:Setup>
Source

<element name="Setup" substitutionGroup="geo:DynamicFeature" type="geo:SetupType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd

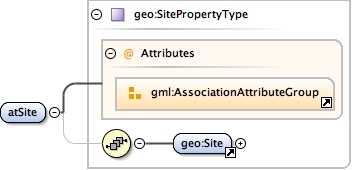

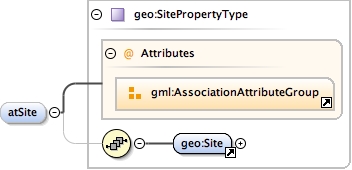

Element geo:SetupType / geo:atSite
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram observationSystem_xsd.tmp#Site observationSystem_xsd.tmp#SitePropertyType
Type geo:SitePropertyType
Properties
content complex
minOccurs 0
Model
Children geo:Site
Instance

<geo:atSite xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <geo:Site>{1,1}</geo:Site>
</geo:atSite>
Source

<element minOccurs="0" name="atSite" type="geo:SitePropertyType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Element geo:SetupType / geo:history
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram fieldMeasurement_xsd.tmp#SetupInstance
Properties
content complex
minOccurs 0
Model
Children geo:SetupInstance
Instance

<geo:history xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <geo:SetupInstance>{1,unbounded}</geo:SetupInstance>
</geo:history>
Source

<element minOccurs="0" name="history">
  <complexType>
    <sequence>
      <element maxOccurs="unbounded" ref="geo:SetupInstance"/>
    </sequence>
  </complexType>
</element>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd

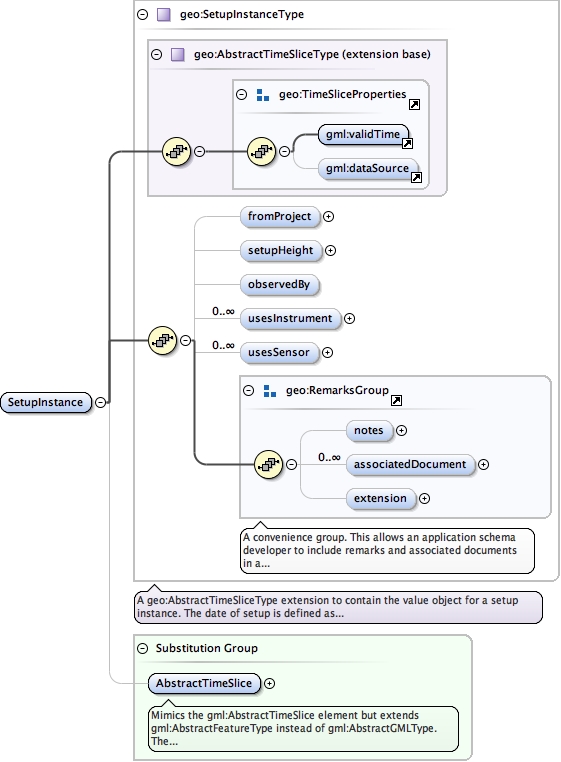

Element geo:SetupInstance
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram commonTypes_xsd.tmp#TimeSliceProperties commonTypes_xsd.tmp#AbstractTimeSliceType fieldMeasurement_xsd.tmp#SetupInstanceType_fromProject fieldMeasurement_xsd.tmp#SetupInstanceType_setupHeight fieldMeasurement_xsd.tmp#SetupInstanceType_observedBy fieldMeasurement_xsd.tmp#SetupInstanceType_usesInstrument fieldMeasurement_xsd.tmp#SetupInstanceType_usesSensor commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup fieldMeasurement_xsd.tmp#SetupInstanceType commonTypes_xsd.tmp#AbstractTimeSlice

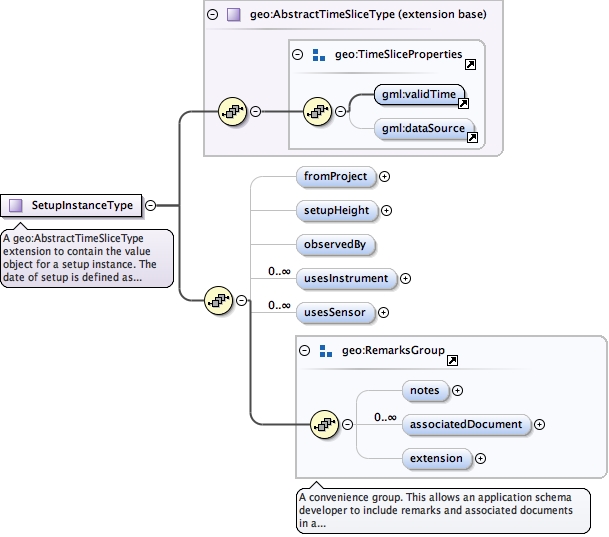

Type geo:SetupInstanceType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children dataSource, geo:associatedDocument, geo:extension, geo:fromProject, geo:notes, geo:observedBy, geo:setupHeight, geo:usesInstrument, geo:usesSensor, validTime
Instance

<geo:SetupInstance xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <validTime>{1,1}</validTime>
  <dataSource>{0,1}</dataSource>
  <geo:fromProject>{0,1}</geo:fromProject>
  <geo:setupHeight axisLabels="" codeSpace="" confidence="" uomLabels="">{0,1}</geo:setupHeight>
  <geo:observedBy>{0,1}</geo:observedBy>
  <geo:usesInstrument>{0,unbounded}</geo:usesInstrument>
  <geo:usesSensor>{0,unbounded}</geo:usesSensor>
  <geo:notes>{0,1}</geo:notes>
  <geo:associatedDocument>{0,unbounded}</geo:associatedDocument>
  <geo:extension>{0,1}</geo:extension>
</geo:SetupInstance>
Source

<element name="SetupInstance" substitutionGroup="geo:AbstractTimeSlice" type="geo:SetupInstanceType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd

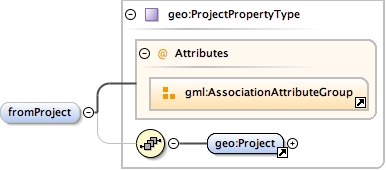

Element geo:SetupInstanceType / geo:fromProject
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram project_xsd.tmp#Project project_xsd.tmp#ProjectPropertyType
Type geo:ProjectPropertyType
Properties
content complex
minOccurs 0
Model
Children geo:Project
Instance

<geo:fromProject xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <geo:Project>{1,1}</geo:Project>
</geo:fromProject>
Source

<element minOccurs="0" name="fromProject" type="geo:ProjectPropertyType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd

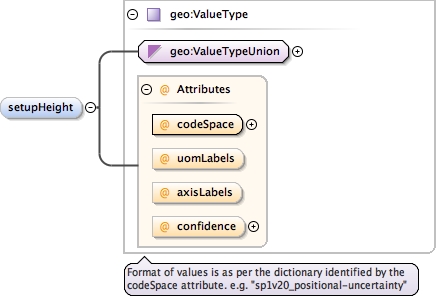

Element geo:SetupInstanceType / geo:setupHeight
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram quality_xsd.tmp#ValueTypeUnion quality_xsd.tmp#ValueType_codeSpace quality_xsd.tmp#ValueType_uomLabels quality_xsd.tmp#ValueType_axisLabels quality_xsd.tmp#ValueType_confidence quality_xsd.tmp#ValueType
Type geo:ValueType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
axisLabels NCNameList optional
codeSpace anyURI required
confidence geo:ConfidenceTypeEnumeration optional
uomLabels NCNameList optional
Source

<element minOccurs="0" name="setupHeight" type="geo:ValueType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Element geo:SetupInstanceType / geo:observedBy
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type CI_ResponsibleParty_PropertyType
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="observedBy" type="gmd:CI_ResponsibleParty_PropertyType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd

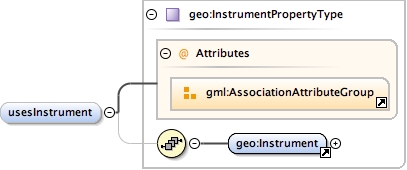

Element geo:SetupInstanceType / geo:usesInstrument
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram commonTypes_xsd.tmp#Instrument commonTypes_xsd.tmp#InstrumentPropertyType
Type geo:InstrumentPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children geo:Instrument
Instance

<geo:usesInstrument xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <geo:Instrument>{1,1}</geo:Instrument>
</geo:usesInstrument>
Source

<element maxOccurs="unbounded" minOccurs="0" name="usesInstrument" type="geo:InstrumentPropertyType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd

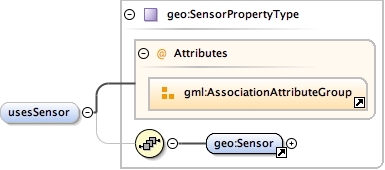

Element geo:SetupInstanceType / geo:usesSensor
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram fieldMeasurement_xsd.tmp#Sensor fieldMeasurement_xsd.tmp#SensorPropertyType
Type geo:SensorPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children geo:Sensor
Instance

<geo:usesSensor xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <geo:Sensor>{1,1}</geo:Sensor>
</geo:usesSensor>
Source

<element maxOccurs="unbounded" minOccurs="0" name="usesSensor" type="geo:SensorPropertyType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd

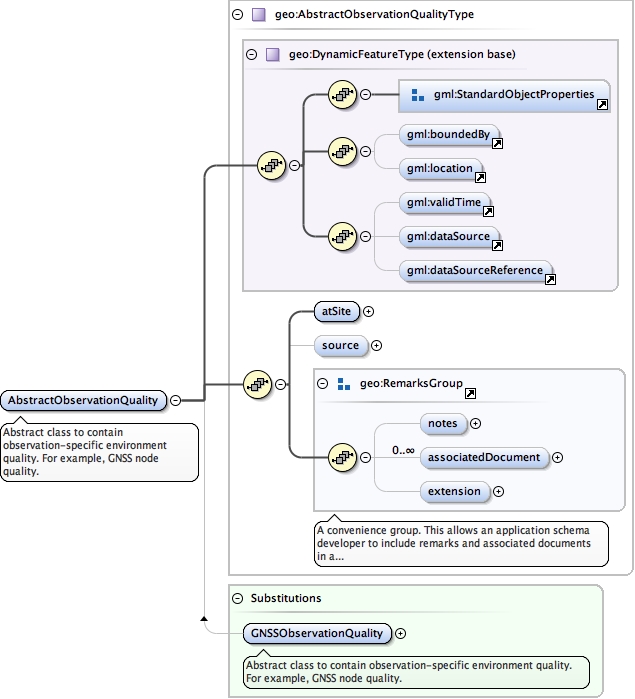

Element geo:AbstractObservationQuality
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Annotations

Abstract class to contain observation-specific environment quality. For example, GNSS node quality.
Diagram
Diagram commonTypes_xsd.tmp#DynamicFeatureType fieldMeasurement_xsd.tmp#AbstractObservationQualityType_atSite fieldMeasurement_xsd.tmp#AbstractObservationQualityType_source commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup fieldMeasurement_xsd.tmp#AbstractObservationQualityType fieldMeasurement_xsd.tmp#GNSSObservationQuality
Type geo:AbstractObservationQualityType
Type hierarchy
Properties
content complex
abstract true
Substitution Group
Substitution Group Affiliation
  • AbstractFeature
Used by
Model
, boundedBy{0,1} , location{0,1} , validTime{0,1} , dataSource{0,1} , dataSourceReference{0,1} , geo:atSite , geo:source{0,1} , geo:notes{0,1} , geo:associatedDocument* , geo:extension{0,1}
Children boundedBy, dataSource, dataSourceReference, geo:associatedDocument, geo:atSite, geo:extension, geo:notes, geo:source, location, validTime
Instance

<geo:AbstractObservationQuality xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <boundedBy>{0,1}</boundedBy>
  <location>{0,1}</location>
  <validTime>{0,1}</validTime>
  <dataSource>{0,1}</dataSource>
  <dataSourceReference>{0,1}</dataSourceReference>
  <geo:atSite>{1,1}</geo:atSite>
  <geo:source>{0,1}</geo:source>
  <geo:notes>{0,1}</geo:notes>
  <geo:associatedDocument>{0,unbounded}</geo:associatedDocument>
  <geo:extension>{0,1}</geo:extension>
</geo:AbstractObservationQuality>
Source

<element abstract="true" name="AbstractObservationQuality" substitutionGroup="gml:AbstractFeature" type="geo:AbstractObservationQualityType">
  <annotation>
    <documentation>Abstract class to contain observation-specific environment quality. For example, GNSS node quality.</documentation>
  </annotation>
</element>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Element geo:AbstractObservationQualityType / geo:atSite
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram observationSystem_xsd.tmp#Site observationSystem_xsd.tmp#SitePropertyType
Type geo:SitePropertyType
Properties
content complex
Model
Children geo:Site
Instance

<geo:atSite xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <geo:Site>{1,1}</geo:Site>
</geo:atSite>
Source

<element name="atSite" type="geo:SitePropertyType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd

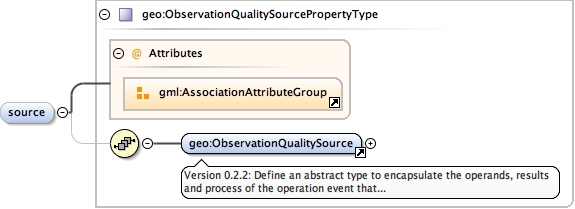

Element geo:AbstractObservationQualityType / geo:source
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram lineage_xsd.tmp#ObservationQualitySource lineage_xsd.tmp#ObservationQualitySourcePropertyType
Type geo:ObservationQualitySourcePropertyType
Properties
content complex
minOccurs 0
Model
Children geo:ObservationQualitySource
Instance

<geo:source xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <geo:ObservationQualitySource>{1,1}</geo:ObservationQualitySource>
</geo:source>
Source

<element minOccurs="0" name="source" type="geo:ObservationQualitySourcePropertyType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd

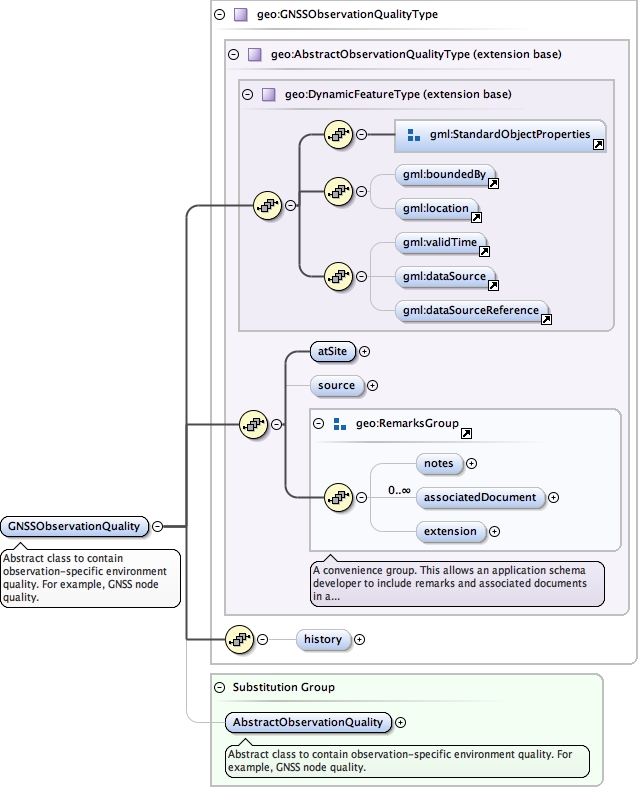

Element geo:GNSSObservationQuality
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Annotations

Abstract class to contain observation-specific environment quality. For example, GNSS node quality.
Diagram
Diagram commonTypes_xsd.tmp#DynamicFeatureType fieldMeasurement_xsd.tmp#AbstractObservationQualityType_atSite fieldMeasurement_xsd.tmp#AbstractObservationQualityType_source commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup fieldMeasurement_xsd.tmp#AbstractObservationQualityType fieldMeasurement_xsd.tmp#GNSSObservationQualityType_history fieldMeasurement_xsd.tmp#GNSSObservationQualityType fieldMeasurement_xsd.tmp#AbstractObservationQuality
Type geo:GNSSObservationQualityType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
, boundedBy{0,1} , location{0,1} , validTime{0,1} , dataSource{0,1} , dataSourceReference{0,1} , geo:atSite , geo:source{0,1} , geo:notes{0,1} , geo:associatedDocument* , geo:extension{0,1} , geo:history{0,1}
Children boundedBy, dataSource, dataSourceReference, geo:associatedDocument, geo:atSite, geo:extension, geo:history, geo:notes, geo:source, location, validTime
Instance

<geo:GNSSObservationQuality xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <boundedBy>{0,1}</boundedBy>
  <location>{0,1}</location>
  <validTime>{0,1}</validTime>
  <dataSource>{0,1}</dataSource>
  <dataSourceReference>{0,1}</dataSourceReference>
  <geo:atSite>{1,1}</geo:atSite>
  <geo:source>{0,1}</geo:source>
  <geo:notes>{0,1}</geo:notes>
  <geo:associatedDocument>{0,unbounded}</geo:associatedDocument>
  <geo:extension>{0,1}</geo:extension>
  <geo:history>{0,1}</geo:history>
</geo:GNSSObservationQuality>
Source

<element name="GNSSObservationQuality" substitutionGroup="geo:AbstractObservationQuality" type="geo:GNSSObservationQualityType">
  <annotation>
    <documentation>Abstract class to contain observation-specific environment quality. For example, GNSS node quality.</documentation>
  </annotation>
</element>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Element geo:GNSSObservationQualityType / geo:history
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram fieldMeasurement_xsd.tmp#GNSSObservationQualityInstance
Properties
content complex
minOccurs 0
Model
Children geo:GNSSObservationQualityInstance
Instance

<geo:history xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <geo:GNSSObservationQualityInstance>{1,unbounded}</geo:GNSSObservationQualityInstance>
</geo:history>
Source

<element minOccurs="0" name="history">
  <complexType>
    <sequence>
      <element maxOccurs="unbounded" ref="geo:GNSSObservationQualityInstance"/>
    </sequence>
  </complexType>
</element>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd

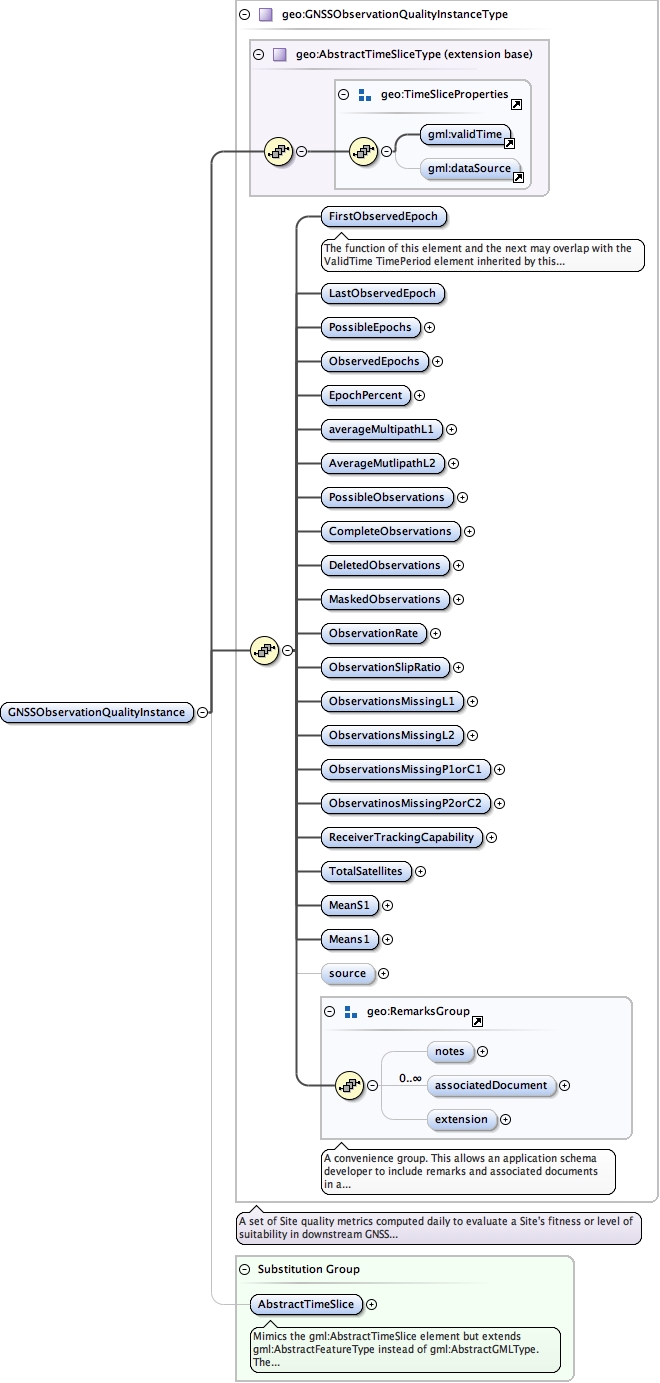

Element geo:GNSSObservationQualityInstance
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram commonTypes_xsd.tmp#TimeSliceProperties commonTypes_xsd.tmp#AbstractTimeSliceType fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_FirstObservedEpoch fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_LastObservedEpoch fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_PossibleEpochs fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_ObservedEpochs fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_EpochPercent fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_averageMultipathL1 fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_AverageMutlipathL2 fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_PossibleObservations fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_CompleteObservations fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_DeletedObservations fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_MaskedObservations fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_ObservationRate fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_ObservationSlipRatio fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_ObservationsMissingL1 fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_ObservationsMissingL2 fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_ObservationsMissingP1orC1 fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_ObservatinosMissingP2orC2 fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_ReceiverTrackingCapability fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_TotalSatellites fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_MeanS1 fieldMeasurement_xsd.tmp#urn_xml-gov-au_icsm_egeodesy_0.4_GNSSObservationQualityInstanceType_Means1 fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_source commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType commonTypes_xsd.tmp#AbstractTimeSlice

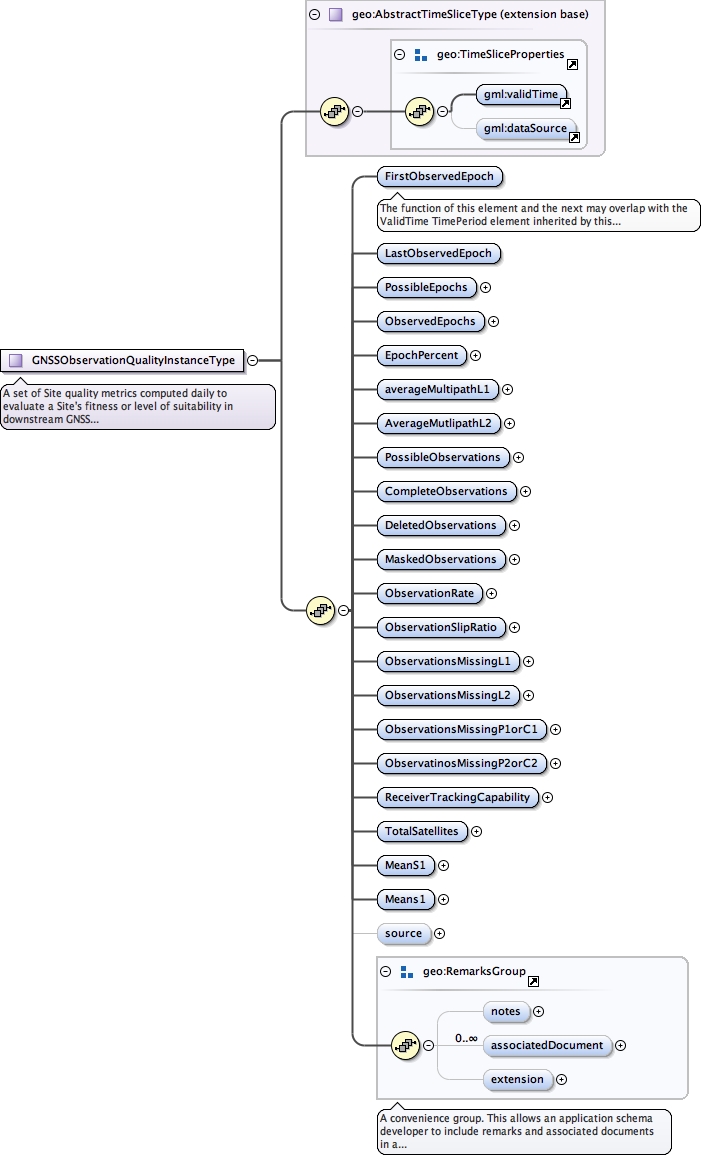

Type geo:GNSSObservationQualityInstanceType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children dataSource, geo:AverageMutlipathL2, geo:CompleteObservations, geo:DeletedObservations, geo:EpochPercent, geo:FirstObservedEpoch, geo:LastObservedEpoch, geo:MaskedObservations, geo:MeanS1, geo:Means1, geo:ObservatinosMissingP2orC2, geo:ObservationRate, geo:ObservationSlipRatio, geo:ObservationsMissingL1, geo:ObservationsMissingL2, geo:ObservationsMissingP1orC1, geo:ObservedEpochs, geo:PossibleEpochs, geo:PossibleObservations, geo:ReceiverTrackingCapability, geo:TotalSatellites, geo:associatedDocument, geo:averageMultipathL1, geo:extension, geo:notes, geo:source, validTime
Instance

<geo:GNSSObservationQualityInstance xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <validTime>{1,1}</validTime>
  <dataSource>{0,1}</dataSource>
  <geo:FirstObservedEpoch>{1,1}</geo:FirstObservedEpoch>
  <geo:LastObservedEpoch>{1,1}</geo:LastObservedEpoch>
  <geo:PossibleEpochs>{1,1}</geo:PossibleEpochs>
  <geo:ObservedEpochs>{1,1}</geo:ObservedEpochs>
  <geo:EpochPercent>{1,1}</geo:EpochPercent>
  <geo:averageMultipathL1 axisLabels="" codeSpace="" confidence="" uomLabels="">{1,1}</geo:averageMultipathL1>
  <geo:AverageMutlipathL2 axisLabels="" codeSpace="" confidence="" uomLabels="">{1,1}</geo:AverageMutlipathL2>
  <geo:PossibleObservations>{1,1}</geo:PossibleObservations>
  <geo:CompleteObservations>{1,1}</geo:CompleteObservations>
  <geo:DeletedObservations>{1,1}</geo:DeletedObservations>
  <geo:MaskedObservations>{1,1}</geo:MaskedObservations>
  <geo:ObservationRate axisLabels="" codeSpace="" confidence="" uomLabels="">{1,1}</geo:ObservationRate>
  <geo:ObservationSlipRatio axisLabels="" codeSpace="" confidence="" uomLabels="">{1,1}</geo:ObservationSlipRatio>
  <geo:ObservationsMissingL1>{1,1}</geo:ObservationsMissingL1>
  <geo:ObservationsMissingL2>{1,1}</geo:ObservationsMissingL2>
  <geo:ObservationsMissingP1orC1>{1,1}</geo:ObservationsMissingP1orC1>
  <geo:ObservatinosMissingP2orC2>{1,1}</geo:ObservatinosMissingP2orC2>
  <geo:ReceiverTrackingCapability>{1,1}</geo:ReceiverTrackingCapability>
  <geo:TotalSatellites>{1,1}</geo:TotalSatellites>
  <geo:MeanS1 axisLabels="" codeSpace="" confidence="" uomLabels="">{1,1}</geo:MeanS1>
  <geo:Means1 axisLabels="" codeSpace="" confidence="" uomLabels="">{1,1}</geo:Means1>
  <geo:source>{0,1}</geo:source>
  <geo:notes>{0,1}</geo:notes>
  <geo:associatedDocument>{0,unbounded}</geo:associatedDocument>
  <geo:extension>{0,1}</geo:extension>
</geo:GNSSObservationQualityInstance>
Source

<element name="GNSSObservationQualityInstance" substitutionGroup="geo:AbstractTimeSlice" type="geo:GNSSObservationQualityInstanceType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Element geo:GNSSObservationQualityInstanceType / geo:FirstObservedEpoch
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Annotations

The function of this element and the next may overlap with the ValidTime TimePeriod element inherited by this complexType from AbstractTimeSliceType.
Diagram
Diagram
Type TimePositionType
Properties
content simple
Source

<element name="FirstObservedEpoch" type="gml:TimePositionType">
  <annotation>
    <documentation>The function of this element and the next may overlap with the ValidTime TimePeriod element inherited by this complexType from AbstractTimeSliceType.</documentation>
  </annotation>
</element>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Element geo:GNSSObservationQualityInstanceType / geo:LastObservedEpoch
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type TimePositionType
Properties
content simple
Source

<element name="LastObservedEpoch" type="gml:TimePositionType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Element geo:GNSSObservationQualityInstanceType / geo:PossibleEpochs
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type integer
Properties
content simple
Source

<element name="PossibleEpochs" type="integer"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Element geo:GNSSObservationQualityInstanceType / geo:ObservedEpochs
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type integer
Properties
content simple
Source

<element name="ObservedEpochs" type="integer"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Element geo:GNSSObservationQualityInstanceType / geo:EpochPercent
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type double
Properties
content simple
Source

<element name="EpochPercent" type="double"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd

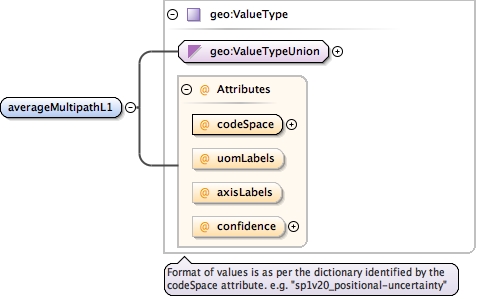

Element geo:GNSSObservationQualityInstanceType / geo:averageMultipathL1
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram quality_xsd.tmp#ValueTypeUnion quality_xsd.tmp#ValueType_codeSpace quality_xsd.tmp#ValueType_uomLabels quality_xsd.tmp#ValueType_axisLabels quality_xsd.tmp#ValueType_confidence quality_xsd.tmp#ValueType
Type geo:ValueType
Type hierarchy
Properties
content complex
Attributes
QName Type Use
axisLabels NCNameList optional
codeSpace anyURI required
confidence geo:ConfidenceTypeEnumeration optional
uomLabels NCNameList optional
Source

<element name="averageMultipathL1" type="geo:ValueType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Element geo:GNSSObservationQualityInstanceType / geo:AverageMutlipathL2
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram quality_xsd.tmp#ValueTypeUnion quality_xsd.tmp#ValueType_codeSpace quality_xsd.tmp#ValueType_uomLabels quality_xsd.tmp#ValueType_axisLabels quality_xsd.tmp#ValueType_confidence quality_xsd.tmp#ValueType
Type geo:ValueType
Type hierarchy
Properties
content complex
Attributes
QName Type Use
axisLabels NCNameList optional
codeSpace anyURI required
confidence geo:ConfidenceTypeEnumeration optional
uomLabels NCNameList optional
Source

<element name="AverageMutlipathL2" type="geo:ValueType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Element geo:GNSSObservationQualityInstanceType / geo:PossibleObservations
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type integer
Properties
content simple
Source

<element name="PossibleObservations" type="integer"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Element geo:GNSSObservationQualityInstanceType / geo:CompleteObservations
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type integer
Properties
content simple
Source

<element name="CompleteObservations" type="integer"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Element geo:GNSSObservationQualityInstanceType / geo:DeletedObservations
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type integer
Properties
content simple
Source

<element name="DeletedObservations" type="integer"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Element geo:GNSSObservationQualityInstanceType / geo:MaskedObservations
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type integer
Properties
content simple
Source

<element name="MaskedObservations" type="integer"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd

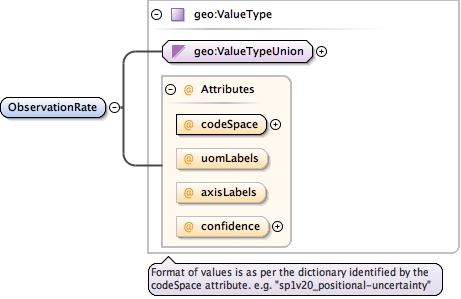

Element geo:GNSSObservationQualityInstanceType / geo:ObservationRate
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram quality_xsd.tmp#ValueTypeUnion quality_xsd.tmp#ValueType_codeSpace quality_xsd.tmp#ValueType_uomLabels quality_xsd.tmp#ValueType_axisLabels quality_xsd.tmp#ValueType_confidence quality_xsd.tmp#ValueType
Type geo:ValueType
Type hierarchy
Properties
content complex
Attributes
QName Type Use
axisLabels NCNameList optional
codeSpace anyURI required
confidence geo:ConfidenceTypeEnumeration optional
uomLabels NCNameList optional
Source

<element name="ObservationRate" type="geo:ValueType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd

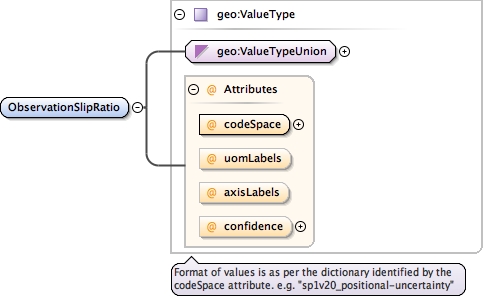

Element geo:GNSSObservationQualityInstanceType / geo:ObservationSlipRatio
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram quality_xsd.tmp#ValueTypeUnion quality_xsd.tmp#ValueType_codeSpace quality_xsd.tmp#ValueType_uomLabels quality_xsd.tmp#ValueType_axisLabels quality_xsd.tmp#ValueType_confidence quality_xsd.tmp#ValueType
Type geo:ValueType
Type hierarchy
Properties
content complex
Attributes
QName Type Use
axisLabels NCNameList optional
codeSpace anyURI required
confidence geo:ConfidenceTypeEnumeration optional
uomLabels NCNameList optional
Source

<element name="ObservationSlipRatio" type="geo:ValueType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Element geo:GNSSObservationQualityInstanceType / geo:ObservationsMissingL1
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type integer
Properties
content simple
Source

<element name="ObservationsMissingL1" type="integer"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Element geo:GNSSObservationQualityInstanceType / geo:ObservationsMissingL2
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type integer
Properties
content simple
Source

<element name="ObservationsMissingL2" type="integer"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Element geo:GNSSObservationQualityInstanceType / geo:ObservationsMissingP1orC1
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type integer
Properties
content simple
Source

<element name="ObservationsMissingP1orC1" type="integer"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Element geo:GNSSObservationQualityInstanceType / geo:ObservatinosMissingP2orC2
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type integer
Properties
content simple
Source

<element name="ObservatinosMissingP2orC2" type="integer"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Element geo:GNSSObservationQualityInstanceType / geo:ReceiverTrackingCapability
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type integer
Properties
content simple
Source

<element name="ReceiverTrackingCapability" type="integer"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Element geo:GNSSObservationQualityInstanceType / geo:TotalSatellites
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type integer
Properties
content simple
Source

<element name="TotalSatellites" type="integer"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Element geo:GNSSObservationQualityInstanceType / geo:MeanS1
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram quality_xsd.tmp#ValueTypeUnion quality_xsd.tmp#ValueType_codeSpace quality_xsd.tmp#ValueType_uomLabels quality_xsd.tmp#ValueType_axisLabels quality_xsd.tmp#ValueType_confidence quality_xsd.tmp#ValueType
Type geo:ValueType
Type hierarchy
Properties
content complex
Attributes
QName Type Use
axisLabels NCNameList optional
codeSpace anyURI required
confidence geo:ConfidenceTypeEnumeration optional
uomLabels NCNameList optional
Source

<element name="MeanS1" type="geo:ValueType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd

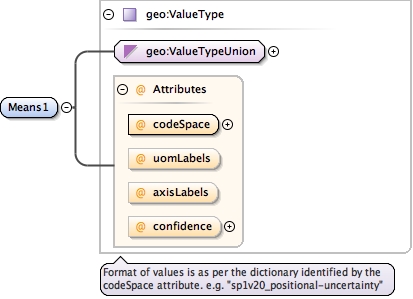

Element geo:GNSSObservationQualityInstanceType / geo:Means1
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram quality_xsd.tmp#ValueTypeUnion quality_xsd.tmp#ValueType_codeSpace quality_xsd.tmp#ValueType_uomLabels quality_xsd.tmp#ValueType_axisLabels quality_xsd.tmp#ValueType_confidence quality_xsd.tmp#ValueType
Type geo:ValueType
Type hierarchy
Properties
content complex
Attributes
QName Type Use
axisLabels NCNameList optional
codeSpace anyURI required
confidence geo:ConfidenceTypeEnumeration optional
uomLabels NCNameList optional
Source

<element name="Means1" type="geo:ValueType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Element geo:GNSSObservationQualityInstanceType / geo:source
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram lineage_xsd.tmp#ObservationQualitySource lineage_xsd.tmp#ObservationQualitySourcePropertyType
Type geo:ObservationQualitySourcePropertyType
Properties
content complex
minOccurs 0
Model
Children geo:ObservationQualitySource
Instance

<geo:source xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <geo:ObservationQualitySource>{1,1}</geo:ObservationQualitySource>
</geo:source>
Source

<element minOccurs="0" name="source" type="geo:ObservationQualitySourcePropertyType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Complex Type geo:SensorType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram fieldMeasurement_xsd.tmp#SensorType_type
Type extension of AbstractGMLType
Type hierarchy
Used by
Element geo:Sensor
Complex Type geo:SensorWithCodeType
Model
Children geo:type
Source

<complexType name="SensorType">
  <complexContent>
    <extension base="gml:AbstractGMLType">
      <sequence>
        <element minOccurs="0" name="type" type="gml:CodeType"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Complex Type geo:SetupType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram commonTypes_xsd.tmp#DynamicFeatureType fieldMeasurement_xsd.tmp#SetupType_atSite fieldMeasurement_xsd.tmp#SetupType_history commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup
Type extension of geo:DynamicFeatureType
Type hierarchy
Used by
Element geo:Setup
Model
, boundedBy{0,1} , location{0,1} , validTime{0,1} , dataSource{0,1} , dataSourceReference{0,1} , geo:atSite{0,1} , geo:history{0,1} , geo:notes{0,1} , geo:associatedDocument* , geo:extension{0,1}
Children boundedBy, dataSource, dataSourceReference, geo:associatedDocument, geo:atSite, geo:extension, geo:history, geo:notes, location, validTime
Source

<complexType name="SetupType">
  <complexContent>
    <extension base="geo:DynamicFeatureType">
      <sequence>
        <element minOccurs="0" name="atSite" type="geo:SitePropertyType"/>
        <element minOccurs="0" name="history">
          <complexType>
            <sequence>
              <element maxOccurs="unbounded" ref="geo:SetupInstance"/>
            </sequence>
          </complexType>
        </element>
        <group ref="geo:RemarksGroup"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Complex Type geo:SetupInstanceType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Annotations

A geo:AbstractTimeSliceType extension to contain the value object for a setup instance. The date of setup is defined as the gml:validTime element inherited from geo:AbstractTimeSliceType.
Diagram
Diagram commonTypes_xsd.tmp#TimeSliceProperties commonTypes_xsd.tmp#AbstractTimeSliceType fieldMeasurement_xsd.tmp#SetupInstanceType_fromProject fieldMeasurement_xsd.tmp#SetupInstanceType_setupHeight fieldMeasurement_xsd.tmp#SetupInstanceType_observedBy fieldMeasurement_xsd.tmp#SetupInstanceType_usesInstrument fieldMeasurement_xsd.tmp#SetupInstanceType_usesSensor commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup
Type extension of geo:AbstractTimeSliceType
Type hierarchy
Used by
Model
Children dataSource, geo:associatedDocument, geo:extension, geo:fromProject, geo:notes, geo:observedBy, geo:setupHeight, geo:usesInstrument, geo:usesSensor, validTime
Source

<complexType name="SetupInstanceType">
  <annotation>
    <documentation>A geo:AbstractTimeSliceType extension to contain the value object for a setup instance. The date of setup is defined as the gml:validTime element inherited from geo:AbstractTimeSliceType.</documentation>
  </annotation>
  <complexContent>
    <extension base="geo:AbstractTimeSliceType">
      <sequence>
        <element minOccurs="0" name="fromProject" type="geo:ProjectPropertyType"/>
        <element minOccurs="0" name="setupHeight" type="geo:ValueType"/>
        <element minOccurs="0" name="observedBy" type="gmd:CI_ResponsibleParty_PropertyType"/>
        <element maxOccurs="unbounded" minOccurs="0" name="usesInstrument" type="geo:InstrumentPropertyType"/>
        <element maxOccurs="unbounded" minOccurs="0" name="usesSensor" type="geo:SensorPropertyType"/>
        <group ref="geo:RemarksGroup"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd

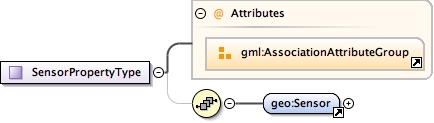

Complex Type geo:SensorPropertyType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram fieldMeasurement_xsd.tmp#Sensor
Used by
Model
Children geo:Sensor
Source

<complexType name="SensorPropertyType">
  <sequence minOccurs="0">
    <element ref="geo:Sensor"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd

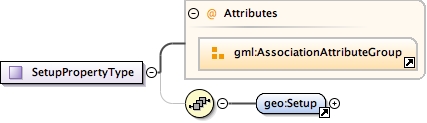

Complex Type geo:SetupPropertyType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram fieldMeasurement_xsd.tmp#Setup
Used by
Model
Children geo:Setup
Source

<complexType name="SetupPropertyType">
  <sequence minOccurs="0">
    <element ref="geo:Setup"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd

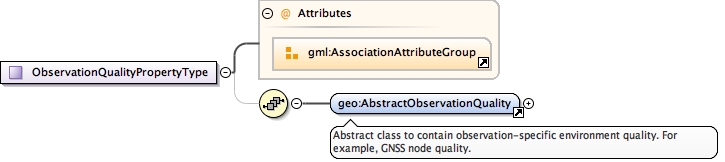

Complex Type geo:ObservationQualityPropertyType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram fieldMeasurement_xsd.tmp#AbstractObservationQuality
Model
Children geo:AbstractObservationQuality
Source

<complexType name="ObservationQualityPropertyType">
  <sequence minOccurs="0">
    <element ref="geo:AbstractObservationQuality"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Complex Type geo:AbstractObservationQualityType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram commonTypes_xsd.tmp#DynamicFeatureType fieldMeasurement_xsd.tmp#AbstractObservationQualityType_atSite fieldMeasurement_xsd.tmp#AbstractObservationQualityType_source commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup
Type extension of geo:DynamicFeatureType
Type hierarchy
Properties
abstract true
Used by
Model
, boundedBy{0,1} , location{0,1} , validTime{0,1} , dataSource{0,1} , dataSourceReference{0,1} , geo:atSite , geo:source{0,1} , geo:notes{0,1} , geo:associatedDocument* , geo:extension{0,1}
Children boundedBy, dataSource, dataSourceReference, geo:associatedDocument, geo:atSite, geo:extension, geo:notes, geo:source, location, validTime
Source

<complexType abstract="true" name="AbstractObservationQualityType">
  <complexContent>
    <extension base="geo:DynamicFeatureType">
      <sequence>
        <element name="atSite" type="geo:SitePropertyType"/>
        <element minOccurs="0" name="source" type="geo:ObservationQualitySourcePropertyType"/>
        <group ref="geo:RemarksGroup"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Complex Type geo:GNSSObservationQualityType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram commonTypes_xsd.tmp#DynamicFeatureType fieldMeasurement_xsd.tmp#AbstractObservationQualityType_atSite fieldMeasurement_xsd.tmp#AbstractObservationQualityType_source commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup fieldMeasurement_xsd.tmp#AbstractObservationQualityType fieldMeasurement_xsd.tmp#GNSSObservationQualityType_history
Type extension of geo:AbstractObservationQualityType
Type hierarchy
Used by
Model
, boundedBy{0,1} , location{0,1} , validTime{0,1} , dataSource{0,1} , dataSourceReference{0,1} , geo:atSite , geo:source{0,1} , geo:notes{0,1} , geo:associatedDocument* , geo:extension{0,1} , geo:history{0,1}
Children boundedBy, dataSource, dataSourceReference, geo:associatedDocument, geo:atSite, geo:extension, geo:history, geo:notes, geo:source, location, validTime
Source

<complexType name="GNSSObservationQualityType">
  <complexContent>
    <extension base="geo:AbstractObservationQualityType">
      <sequence>
        <element minOccurs="0" name="history">
          <complexType>
            <sequence>
              <element maxOccurs="unbounded" ref="geo:GNSSObservationQualityInstance"/>
            </sequence>
          </complexType>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
Complex Type geo:GNSSObservationQualityInstanceType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Annotations

A set of Site quality metrics computed daily to evaluate a Site's fitness or level of suitability in downstream GNSS analysis.
Diagram
Diagram commonTypes_xsd.tmp#TimeSliceProperties commonTypes_xsd.tmp#AbstractTimeSliceType fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_FirstObservedEpoch fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_LastObservedEpoch fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_PossibleEpochs fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_ObservedEpochs fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_EpochPercent fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_averageMultipathL1 fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_AverageMutlipathL2 fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_PossibleObservations fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_CompleteObservations fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_DeletedObservations fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_MaskedObservations fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_ObservationRate fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_ObservationSlipRatio fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_ObservationsMissingL1 fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_ObservationsMissingL2 fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_ObservationsMissingP1orC1 fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_ObservatinosMissingP2orC2 fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_ReceiverTrackingCapability fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_TotalSatellites fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_MeanS1 fieldMeasurement_xsd.tmp#urn_xml-gov-au_icsm_egeodesy_0.4_GNSSObservationQualityInstanceType_Means1 fieldMeasurement_xsd.tmp#GNSSObservationQualityInstanceType_source commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup
Type extension of geo:AbstractTimeSliceType
Type hierarchy
Used by
Model
Children dataSource, geo:AverageMutlipathL2, geo:CompleteObservations, geo:DeletedObservations, geo:EpochPercent, geo:FirstObservedEpoch, geo:LastObservedEpoch, geo:MaskedObservations, geo:MeanS1, geo:Means1, geo:ObservatinosMissingP2orC2, geo:ObservationRate, geo:ObservationSlipRatio, geo:ObservationsMissingL1, geo:ObservationsMissingL2, geo:ObservationsMissingP1orC1, geo:ObservedEpochs, geo:PossibleEpochs, geo:PossibleObservations, geo:ReceiverTrackingCapability, geo:TotalSatellites, geo:associatedDocument, geo:averageMultipathL1, geo:extension, geo:notes, geo:source, validTime
Source

<complexType name="GNSSObservationQualityInstanceType">
  <annotation>
    <documentation>A set of Site quality metrics computed daily to evaluate a Site's fitness or level of suitability in downstream GNSS analysis.</documentation>
  </annotation>
  <complexContent>
    <extension base="geo:AbstractTimeSliceType">
      <sequence>
        <element name="FirstObservedEpoch" type="gml:TimePositionType">
          <annotation>
            <documentation>The function of this element and the next may overlap with the ValidTime TimePeriod element inherited by this complexType from AbstractTimeSliceType.</documentation>
          </annotation>
        </element>
        <element name="LastObservedEpoch" type="gml:TimePositionType"/>
        <element name="PossibleEpochs" type="integer"/>
        <element name="ObservedEpochs" type="integer"/>
        <element name="EpochPercent" type="double"/>
        <element name="averageMultipathL1" type="geo:ValueType"/>
        <element name="AverageMutlipathL2" type="geo:ValueType"/>
        <element name="PossibleObservations" type="integer"/>
        <element name="CompleteObservations" type="integer"/>
        <element name="DeletedObservations" type="integer"/>
        <element name="MaskedObservations" type="integer"/>
        <element name="ObservationRate" type="geo:ValueType"/>
        <element name="ObservationSlipRatio" type="geo:ValueType"/>
        <element name="ObservationsMissingL1" type="integer"/>
        <element name="ObservationsMissingL2" type="integer"/>
        <element name="ObservationsMissingP1orC1" type="integer"/>
        <element name="ObservatinosMissingP2orC2" type="integer"/>
        <element name="ReceiverTrackingCapability" type="integer"/>
        <element name="TotalSatellites" type="integer"/>
        <element name="MeanS1" type="geo:ValueType"/>
        <element name="Means1" type="geo:ValueType"/>
        <element minOccurs="0" name="source" type="geo:ObservationQualitySourcePropertyType"/>
        <group ref="geo:RemarksGroup"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/fieldMeasurement.xsd
XML Schema documentation generated by ® XML Editor.
