Included schema equipment.xsd
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Annotations

<p>Derived from SOPAC IGS Site Log XML Schema 2011</p>
<ul>
  <li>http://sopac.ucsd.edu/ns/geodesy/doc/igsSiteLog/equipment/2004/antenna.xsd</li>
  <li>http://sopac.ucsd.edu/ns/geodesy/doc/igsSiteLog/equipment/2004/baseEquipmentLib.xsd</li>
  <li>http://sopac.ucsd.edu/ns/geodesy/doc/igsSiteLog/equipment/2004/collocationInformation.xsd</li>
  <li>http://sopac.ucsd.edu/ns/geodesy/doc/igsSiteLog/equipment/2004/frequencyStandard.xsd</li>
  <li>http://sopac.ucsd.edu/ns/geodesy/doc/igsSiteLog/equipment/2004/humiditySensor.xsd</li>
  <li>http://sopac.ucsd.edu/ns/geodesy/doc/igsSiteLog/equipment/2004/otherInstrumentation.xsd</li>
  <li>http://sopac.ucsd.edu/ns/geodesy/doc/igsSiteLog/equipment/2004/pressureSensor.xsd</li>
  <li>http://sopac.ucsd.edu/ns/geodesy/doc/igsSiteLog/equipment/2004/receiver.xsd</li>
  <li>http://sopac.ucsd.edu/ns/geodesy/doc/igsSiteLog/equipment/2004/surveyedLocalTies.xsd</li>
  <li>http://sopac.ucsd.edu/ns/geodesy/doc/igsSiteLog/equipment/2004/temperatureSensor.xsd</li>
  <li>http://sopac.ucsd.edu/ns/geodesy/doc/igsSiteLog/equipment/2004/waterVaporSensor.xsd</li>
</ul>
<p>Modifications from original</p>
<ul>
  <li>Made part of eGeodesy namespace</li>
  <li>Combined all equipment definitions into one file</li>
  <li>Made all sensor types inherit from geo:SensorWithCodeType and geo:SensorType</li>
  <li>Replaced the use of enumerations with GML code lists (the original enumeration values are still present)</li>
  <li>Changed type of single date elements to gml:TimePosititionType</li>
  <li>Changed date range elements references to gml:validTime</li>
  <li>Changed types of numerical quantities from string to decimal</li>
  <li>Added change tracking elements to all equipment types</li>
  <li>Adopted GML conventions of global element definitions and property references</li>
</ul>
Properties
attribute form default unqualified
element form default qualified
version 0.4
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd

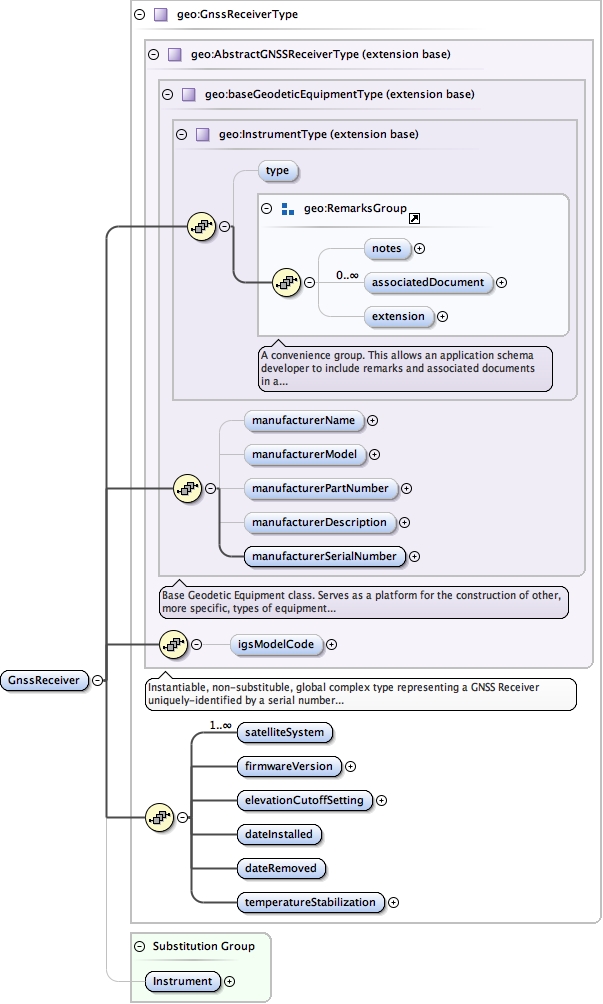

Element geo:GnssReceiver
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram commonTypes_xsd.tmp#InstrumentType_type commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup commonTypes_xsd.tmp#InstrumentType geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType_manufacturerName geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType_manufacturerModel geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType_manufacturerPartNumber geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType_manufacturerDescription geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType_manufacturerSerialNumber geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType geodeticEquipment_xsd.tmp#AbstractGNSSReceiverType_igsModelCode geodeticEquipment_xsd.tmp#AbstractGNSSReceiverType equipment_xsd.tmp#GnssReceiverType_satelliteSystem equipment_xsd.tmp#GnssReceiverType_firmwareVersion equipment_xsd.tmp#GnssReceiverType_elevationCutoffSetting equipment_xsd.tmp#GnssReceiverType_dateInstalled equipment_xsd.tmp#GnssReceiverType_dateRemoved equipment_xsd.tmp#GnssReceiverType_temperatureStabilization equipment_xsd.tmp#GnssReceiverType commonTypes_xsd.tmp#Instrument

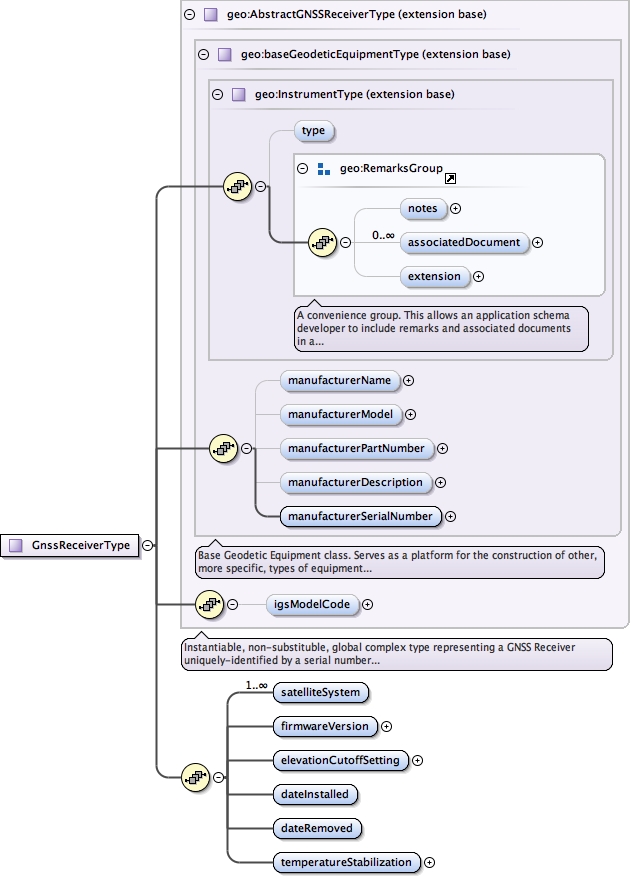

Type geo:GnssReceiverType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children geo:associatedDocument, geo:dateInstalled, geo:dateRemoved, geo:elevationCutoffSetting, geo:extension, geo:firmwareVersion, geo:igsModelCode, geo:manufacturerDescription, geo:manufacturerModel, geo:manufacturerName, geo:manufacturerPartNumber, geo:manufacturerSerialNumber, geo:notes, geo:satelliteSystem, geo:temperatureStabilization, geo:type
Instance

<geo:GnssReceiver xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <geo:type>{0,1}</geo:type>
  <geo:notes>{0,1}</geo:notes>
  <geo:associatedDocument>{0,unbounded}</geo:associatedDocument>
  <geo:extension>{0,1}</geo:extension>
  <geo:manufacturerName>{0,1}</geo:manufacturerName>
  <geo:manufacturerModel>{0,1}</geo:manufacturerModel>
  <geo:manufacturerPartNumber>{0,1}</geo:manufacturerPartNumber>
  <geo:manufacturerDescription>{0,1}</geo:manufacturerDescription>
  <geo:manufacturerSerialNumber>{1,1}</geo:manufacturerSerialNumber>
  <geo:igsModelCode>{0,1}</geo:igsModelCode>
  <geo:satelliteSystem>{1,unbounded}</geo:satelliteSystem>
  <geo:firmwareVersion>{1,1}</geo:firmwareVersion>
  <geo:elevationCutoffSetting>{1,1}</geo:elevationCutoffSetting>
  <geo:dateInstalled>{1,1}</geo:dateInstalled>
  <geo:dateRemoved>{1,1}</geo:dateRemoved>
  <geo:temperatureStabilization>{1,1}</geo:temperatureStabilization>
</geo:GnssReceiver>
Source

<element name="GnssReceiver" substitutionGroup="geo:Instrument" type="geo:GnssReceiverType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:GnssReceiverType / geo:satelliteSystem
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type CodeType
Properties
content simple
maxOccurs unbounded
Source

<element maxOccurs="unbounded" name="satelliteSystem" type="gml:CodeType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:GnssReceiverType / geo:firmwareVersion
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type string
Properties
content simple
Source

<element name="firmwareVersion" type="string"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:GnssReceiverType / geo:elevationCutoffSetting
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type double
Properties
content simple
nillable true
Source

<element name="elevationCutoffSetting" type="double" nillable="true"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:GnssReceiverType / geo:dateInstalled
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type TimePositionType
Properties
content simple
Source

<element name="dateInstalled" type="gml:TimePositionType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:GnssReceiverType / geo:dateRemoved
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type TimePositionType
Properties
content simple
Source

<element name="dateRemoved" type="gml:TimePositionType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:GnssReceiverType / geo:temperatureStabilization
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type double
Properties
content simple
nillable true
Source

<element name="temperatureStabilization" type="double" nillable="true"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd

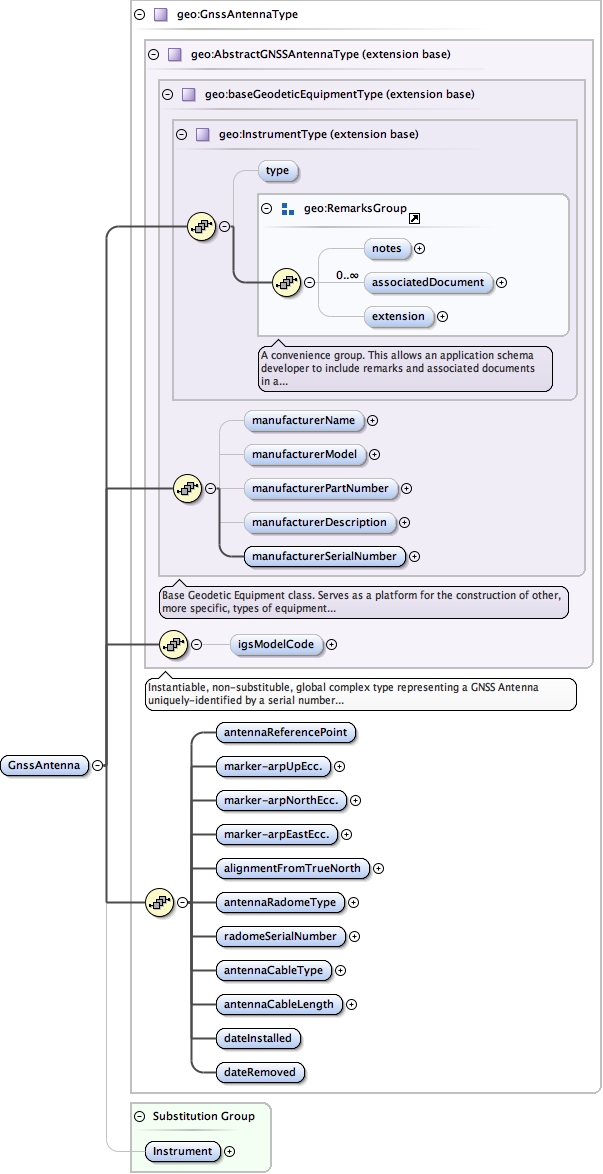

Element geo:GnssAntenna
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram commonTypes_xsd.tmp#InstrumentType_type commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup commonTypes_xsd.tmp#InstrumentType geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType_manufacturerName geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType_manufacturerModel geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType_manufacturerPartNumber geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType_manufacturerDescription geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType_manufacturerSerialNumber geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType geodeticEquipment_xsd.tmp#AbstractGNSSAntennaType_igsModelCode geodeticEquipment_xsd.tmp#AbstractGNSSAntennaType equipment_xsd.tmp#GnssAntennaType_antennaReferencePoint equipment_xsd.tmp#GnssAntennaType_marker-arpUpEcc. equipment_xsd.tmp#GnssAntennaType_marker-arpNorthEcc. equipment_xsd.tmp#GnssAntennaType_marker-arpEastEcc. equipment_xsd.tmp#GnssAntennaType_alignmentFromTrueNorth equipment_xsd.tmp#GnssAntennaType_antennaRadomeType equipment_xsd.tmp#GnssAntennaType_radomeSerialNumber equipment_xsd.tmp#GnssAntennaType_antennaCableType equipment_xsd.tmp#GnssAntennaType_antennaCableLength equipment_xsd.tmp#GnssAntennaType_dateInstalled equipment_xsd.tmp#GnssAntennaType_dateRemoved equipment_xsd.tmp#GnssAntennaType commonTypes_xsd.tmp#Instrument
Type geo:GnssAntennaType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children geo:alignmentFromTrueNorth, geo:antennaCableLength, geo:antennaCableType, geo:antennaRadomeType, geo:antennaReferencePoint, geo:associatedDocument, geo:dateInstalled, geo:dateRemoved, geo:extension, geo:igsModelCode, geo:manufacturerDescription, geo:manufacturerModel, geo:manufacturerName, geo:manufacturerPartNumber, geo:manufacturerSerialNumber, geo:marker-arpEastEcc., geo:marker-arpNorthEcc., geo:marker-arpUpEcc., geo:notes, geo:radomeSerialNumber, geo:type
Instance

<geo:GnssAntenna xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <geo:type>{0,1}</geo:type>
  <geo:notes>{0,1}</geo:notes>
  <geo:associatedDocument>{0,unbounded}</geo:associatedDocument>
  <geo:extension>{0,1}</geo:extension>
  <geo:manufacturerName>{0,1}</geo:manufacturerName>
  <geo:manufacturerModel>{0,1}</geo:manufacturerModel>
  <geo:manufacturerPartNumber>{0,1}</geo:manufacturerPartNumber>
  <geo:manufacturerDescription>{0,1}</geo:manufacturerDescription>
  <geo:manufacturerSerialNumber>{1,1}</geo:manufacturerSerialNumber>
  <geo:igsModelCode>{0,1}</geo:igsModelCode>
  <geo:antennaReferencePoint>{1,1}</geo:antennaReferencePoint>
  <geo:marker-arpUpEcc.>{1,1}</geo:marker-arpUpEcc.>
  <geo:marker-arpNorthEcc.>{1,1}</geo:marker-arpNorthEcc.>
  <geo:marker-arpEastEcc.>{1,1}</geo:marker-arpEastEcc.>
  <geo:alignmentFromTrueNorth>{1,1}</geo:alignmentFromTrueNorth>
  <geo:antennaRadomeType>{1,1}</geo:antennaRadomeType>
  <geo:radomeSerialNumber>{1,1}</geo:radomeSerialNumber>
  <geo:antennaCableType>{1,1}</geo:antennaCableType>
  <geo:antennaCableLength>{1,1}</geo:antennaCableLength>
  <geo:dateInstalled>{1,1}</geo:dateInstalled>
  <geo:dateRemoved>{1,1}</geo:dateRemoved>
</geo:GnssAntenna>
Source

<element name="GnssAntenna" substitutionGroup="geo:Instrument" type="geo:GnssAntennaType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:GnssAntennaType / geo:antennaReferencePoint
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type CodeType
Properties
content simple
Source

<element name="antennaReferencePoint" type="gml:CodeType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:GnssAntennaType / geo:marker-arpUpEcc.
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type double
Properties
content simple
nillable true
Source

<element name="marker-arpUpEcc." type="double" nillable="true"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:GnssAntennaType / geo:marker-arpNorthEcc.
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type double
Properties
content simple
nillable true
Source

<element name="marker-arpNorthEcc." type="double" nillable="true"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:GnssAntennaType / geo:marker-arpEastEcc.
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type double
Properties
content simple
nillable true
Source

<element name="marker-arpEastEcc." type="double" nillable="true"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:GnssAntennaType / geo:alignmentFromTrueNorth
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type double
Properties
content simple
nillable true
Source

<element name="alignmentFromTrueNorth" type="double" nillable="true"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:GnssAntennaType / geo:antennaRadomeType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram geodeticEquipment_xsd.tmp#igsRadomeModelCodeType
Type geo:igsRadomeModelCodeType
Type hierarchy
Properties
content complex
Source

<element name="antennaRadomeType" type="geo:igsRadomeModelCodeType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:GnssAntennaType / geo:radomeSerialNumber
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type string
Properties
content simple
Source

<element name="radomeSerialNumber" type="string"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:GnssAntennaType / geo:antennaCableType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type string
Properties
content simple
Source

<element name="antennaCableType" type="string"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:GnssAntennaType / geo:antennaCableLength
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type double
Properties
content simple
nillable true
Source

<element name="antennaCableLength" type="double" nillable="true"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:GnssAntennaType / geo:dateInstalled
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type TimePositionType
Properties
content simple
Source

<element name="dateInstalled" type="gml:TimePositionType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:GnssAntennaType / geo:dateRemoved
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type TimePositionType
Properties
content simple
Source

<element name="dateRemoved" type="gml:TimePositionType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd

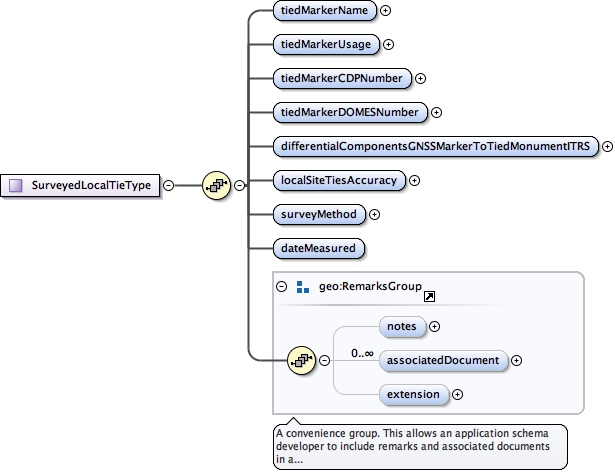

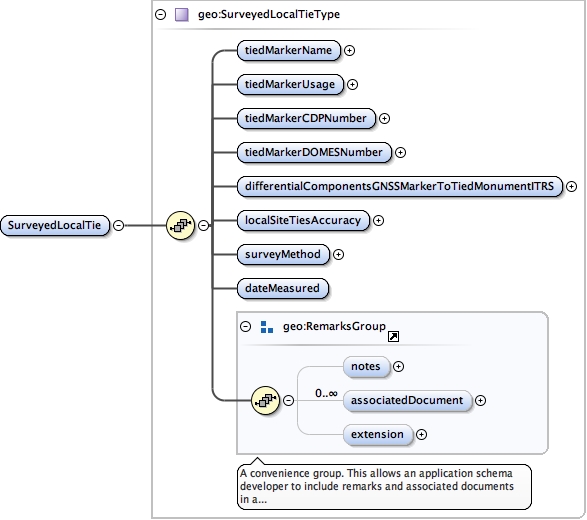

Element geo:SurveyedLocalTie
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram equipment_xsd.tmp#SurveyedLocalTieType_tiedMarkerName equipment_xsd.tmp#SurveyedLocalTieType_tiedMarkerUsage equipment_xsd.tmp#SurveyedLocalTieType_tiedMarkerCDPNumber equipment_xsd.tmp#SurveyedLocalTieType_tiedMarkerDOMESNumber equipment_xsd.tmp#SurveyedLocalTieType_differentialComponentsGNSSMarkerToTiedMonumentITRS equipment_xsd.tmp#SurveyedLocalTieType_localSiteTiesAccuracy equipment_xsd.tmp#SurveyedLocalTieType_surveyMethod equipment_xsd.tmp#SurveyedLocalTieType_dateMeasured commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup equipment_xsd.tmp#SurveyedLocalTieType
Type geo:SurveyedLocalTieType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
  • AbstractFeature
Used by
Model
Children geo:associatedDocument, geo:dateMeasured, geo:differentialComponentsGNSSMarkerToTiedMonumentITRS, geo:extension, geo:localSiteTiesAccuracy, geo:notes, geo:surveyMethod, geo:tiedMarkerCDPNumber, geo:tiedMarkerDOMESNumber, geo:tiedMarkerName, geo:tiedMarkerUsage
Instance

<geo:SurveyedLocalTie xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <geo:tiedMarkerName>{1,1}</geo:tiedMarkerName>
  <geo:tiedMarkerUsage>{1,1}</geo:tiedMarkerUsage>
  <geo:tiedMarkerCDPNumber>{1,1}</geo:tiedMarkerCDPNumber>
  <geo:tiedMarkerDOMESNumber>{1,1}</geo:tiedMarkerDOMESNumber>
  <geo:differentialComponentsGNSSMarkerToTiedMonumentITRS>{1,1}</geo:differentialComponentsGNSSMarkerToTiedMonumentITRS>
  <geo:localSiteTiesAccuracy>{1,1}</geo:localSiteTiesAccuracy>
  <geo:surveyMethod>{1,1}</geo:surveyMethod>
  <geo:dateMeasured>{1,1}</geo:dateMeasured>
  <geo:notes>{0,1}</geo:notes>
  <geo:associatedDocument>{0,unbounded}</geo:associatedDocument>
  <geo:extension>{0,1}</geo:extension>
</geo:SurveyedLocalTie>
Source

<element name="SurveyedLocalTie" substitutionGroup="gml:AbstractFeature" type="geo:SurveyedLocalTieType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:SurveyedLocalTieType / geo:tiedMarkerName
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type string
Properties
content simple
Source

<element name="tiedMarkerName" type="string"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:SurveyedLocalTieType / geo:tiedMarkerUsage
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type string
Properties
content simple
Source

<element name="tiedMarkerUsage" type="string"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:SurveyedLocalTieType / geo:tiedMarkerCDPNumber
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type string
Properties
content simple
Source

<element name="tiedMarkerCDPNumber" type="string"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:SurveyedLocalTieType / geo:tiedMarkerDOMESNumber
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type string
Properties
content simple
Source

<element name="tiedMarkerDOMESNumber" type="string"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:SurveyedLocalTieType / geo:differentialComponentsGNSSMarkerToTiedMonumentITRS
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram equipment_xsd.tmp#SurveyedLocalTieType_SurveyedLocalTieType_differentialComponentsGNSSMarkerToTiedMonumentITRS_dx equipment_xsd.tmp#SurveyedLocalTieType_SurveyedLocalTieType_differentialComponentsGNSSMarkerToTiedMonumentITRS_dy equipment_xsd.tmp#SurveyedLocalTieType_SurveyedLocalTieType_differentialComponentsGNSSMarkerToTiedMonumentITRS_dz
Properties
content complex
Model
Children geo:dx, geo:dy, geo:dz
Instance

<geo:differentialComponentsGNSSMarkerToTiedMonumentITRS xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <geo:dx>{1,1}</geo:dx>
  <geo:dy>{1,1}</geo:dy>
  <geo:dz>{1,1}</geo:dz>
</geo:differentialComponentsGNSSMarkerToTiedMonumentITRS>
Source

<element name="differentialComponentsGNSSMarkerToTiedMonumentITRS">
  <complexType>
    <sequence>
      <element name="dx" type="double"/>
      <element name="dy" type="double"/>
      <element name="dz" type="double"/>
    </sequence>
  </complexType>
</element>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:SurveyedLocalTieType / geo:differentialComponentsGNSSMarkerToTiedMonumentITRS / geo:dx
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type double
Properties
content simple
Source

<element name="dx" type="double"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:SurveyedLocalTieType / geo:differentialComponentsGNSSMarkerToTiedMonumentITRS / geo:dy
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type double
Properties
content simple
Source

<element name="dy" type="double"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:SurveyedLocalTieType / geo:differentialComponentsGNSSMarkerToTiedMonumentITRS / geo:dz
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type double
Properties
content simple
Source

<element name="dz" type="double"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:SurveyedLocalTieType / geo:localSiteTiesAccuracy
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type double
Properties
content simple
nillable true
Source

<element name="localSiteTiesAccuracy" type="double" nillable="true"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:SurveyedLocalTieType / geo:surveyMethod
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type string
Properties
content simple
Source

<element name="surveyMethod" type="string"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:SurveyedLocalTieType / geo:dateMeasured
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type TimePositionType
Properties
content simple
Source

<element name="dateMeasured" type="gml:TimePositionType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd

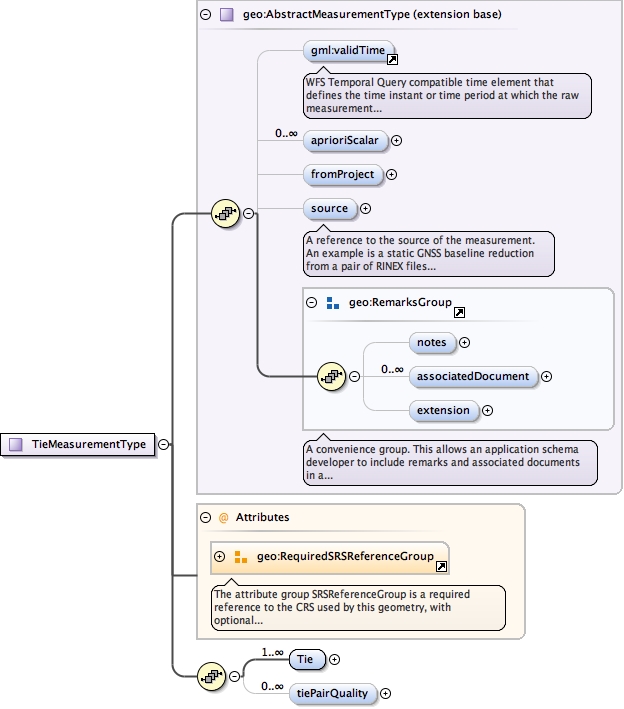

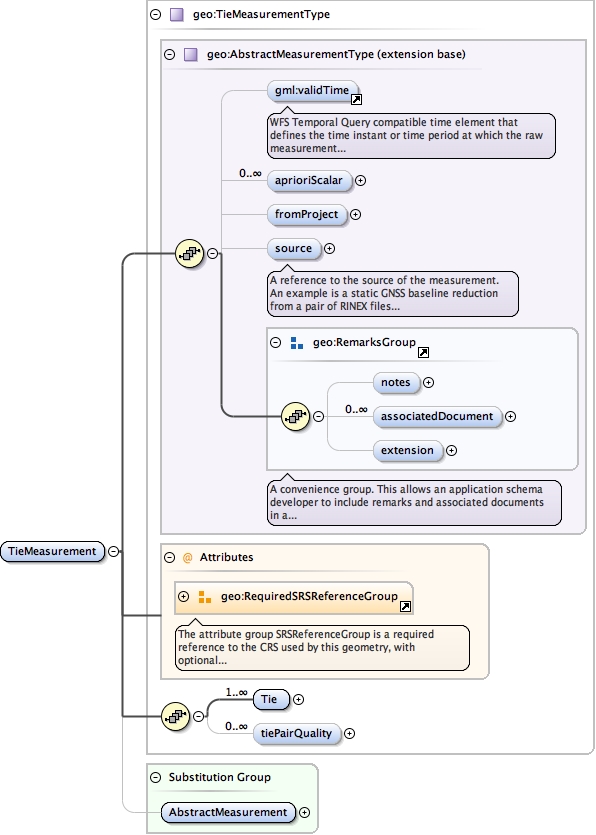

Element geo:TieMeasurement
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram measurement_xsd.tmp#AbstractMeasurementType_aprioriScalar measurement_xsd.tmp#AbstractMeasurementType_fromProject measurement_xsd.tmp#AbstractMeasurementType_source commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup measurement_xsd.tmp#AbstractMeasurementType commonTypes_xsd.tmp#RequiredSRSReferenceGroup equipment_xsd.tmp#TieMeasurementType_Tie equipment_xsd.tmp#TieMeasurementType_tiePairQuality equipment_xsd.tmp#TieMeasurementType measurement_xsd.tmp#AbstractMeasurement
Type geo:TieMeasurementType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children geo:Tie, geo:aprioriScalar, geo:associatedDocument, geo:extension, geo:fromProject, geo:notes, geo:source, geo:tiePairQuality, validTime
Instance

<geo:TieMeasurement srsDimension="" srsName="" xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <validTime>{0,1}</validTime>
  <geo:aprioriScalar axisLabels="" codeSpace="" confidence="" uomLabels="">{0,unbounded}</geo:aprioriScalar>
  <geo:fromProject>{0,1}</geo:fromProject>
  <geo:source>{0,1}</geo:source>
  <geo:notes>{0,1}</geo:notes>
  <geo:associatedDocument>{0,unbounded}</geo:associatedDocument>
  <geo:extension>{0,1}</geo:extension>
  <geo:Tie>{1,unbounded}</geo:Tie>
  <geo:tiePairQuality>{0,unbounded}</geo:tiePairQuality>
</geo:TieMeasurement>
Attributes
QName Type Use
srsDimension positiveInteger optional
srsName anyURI required
Source

<element name="TieMeasurement" substitutionGroup="geo:AbstractMeasurement" type="geo:TieMeasurementType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd

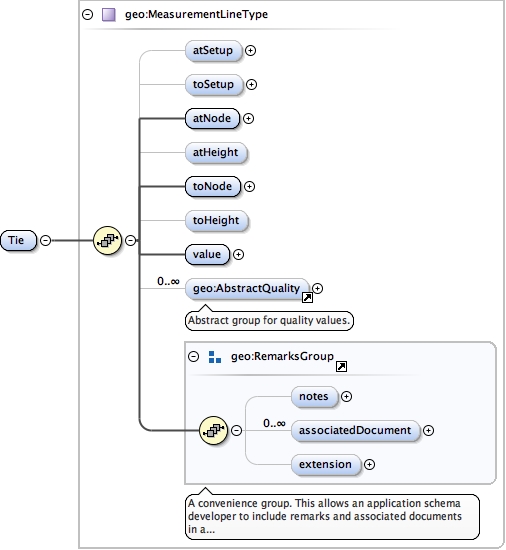

Element geo:TieMeasurementType / geo:Tie
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram measurement_xsd.tmp#MeasurementLineType_atSetup measurement_xsd.tmp#MeasurementLineType_toSetup measurement_xsd.tmp#MeasurementLineType_atNode measurement_xsd.tmp#MeasurementLineType_atHeight measurement_xsd.tmp#MeasurementLineType_toNode measurement_xsd.tmp#MeasurementLineType_toHeight measurement_xsd.tmp#MeasurementLineType_value quality_xsd.tmp#AbstractQuality commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup measurement_xsd.tmp#MeasurementLineType
Type geo:MeasurementLineType
Type hierarchy
Properties
content complex
maxOccurs unbounded
Model
Children geo:AbstractQuality, geo:associatedDocument, geo:atHeight, geo:atNode, geo:atSetup, geo:extension, geo:notes, geo:toHeight, geo:toNode, geo:toSetup, geo:value
Instance

<geo:Tie xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <geo:atSetup>{0,1}</geo:atSetup>
  <geo:toSetup>{0,1}</geo:toSetup>
  <geo:atNode>{1,1}</geo:atNode>
  <geo:atHeight>{0,1}</geo:atHeight>
  <geo:toNode>{1,1}</geo:toNode>
  <geo:toHeight>{0,1}</geo:toHeight>
  <geo:value>{1,1}</geo:value>
  <geo:AbstractQuality>{0,unbounded}</geo:AbstractQuality>
  <geo:notes>{0,1}</geo:notes>
  <geo:associatedDocument>{0,unbounded}</geo:associatedDocument>
  <geo:extension>{0,1}</geo:extension>
</geo:Tie>
Source

<element maxOccurs="unbounded" name="Tie" type="geo:MeasurementLineType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd

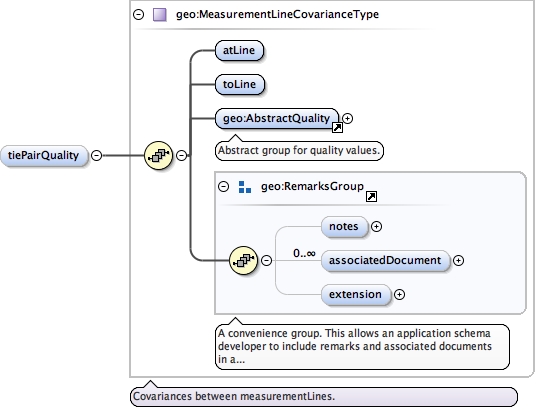

Element geo:TieMeasurementType / geo:tiePairQuality
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram measurement_xsd.tmp#MeasurementLineCovarianceType_atLine measurement_xsd.tmp#MeasurementLineCovarianceType_toLine quality_xsd.tmp#AbstractQuality commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup measurement_xsd.tmp#MeasurementLineCovarianceType
Type geo:MeasurementLineCovarianceType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children geo:AbstractQuality, geo:associatedDocument, geo:atLine, geo:extension, geo:notes, geo:toLine
Instance

<geo:tiePairQuality xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <geo:atLine>{1,1}</geo:atLine>
  <geo:toLine>{1,1}</geo:toLine>
  <geo:AbstractQuality>{1,1}</geo:AbstractQuality>
  <geo:notes>{0,1}</geo:notes>
  <geo:associatedDocument>{0,unbounded}</geo:associatedDocument>
  <geo:extension>{0,1}</geo:extension>
</geo:tiePairQuality>
Source

<element maxOccurs="unbounded" minOccurs="0" name="tiePairQuality" type="geo:MeasurementLineCovarianceType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd

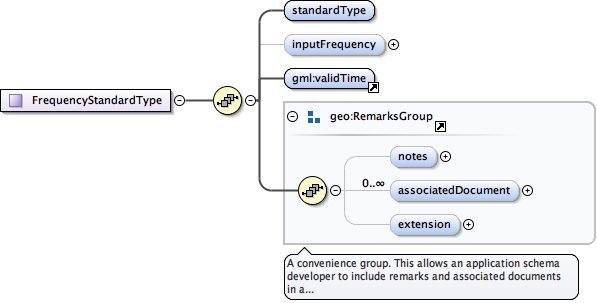

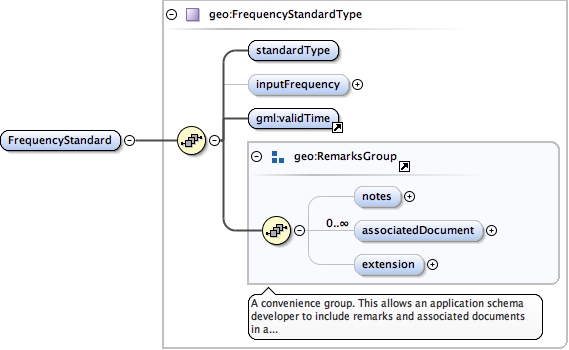

Element geo:FrequencyStandard
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram equipment_xsd.tmp#FrequencyStandardType_standardType equipment_xsd.tmp#FrequencyStandardType_inputFrequency commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup equipment_xsd.tmp#FrequencyStandardType
Type geo:FrequencyStandardType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
  • AbstractGML
Used by
Model
Children geo:associatedDocument, geo:extension, geo:inputFrequency, geo:notes, geo:standardType, validTime
Instance

<geo:FrequencyStandard xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <geo:standardType>{1,1}</geo:standardType>
  <geo:inputFrequency>{0,1}</geo:inputFrequency>
  <validTime>{1,1}</validTime>
  <geo:notes>{0,1}</geo:notes>
  <geo:associatedDocument>{0,unbounded}</geo:associatedDocument>
  <geo:extension>{0,1}</geo:extension>
</geo:FrequencyStandard>
Source

<element name="FrequencyStandard" substitutionGroup="gml:AbstractGML" type="geo:FrequencyStandardType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:FrequencyStandardType / geo:standardType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type CodeType
Properties
content simple
Source

<element name="standardType" type="gml:CodeType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:FrequencyStandardType / geo:inputFrequency
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type double
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="inputFrequency" type="double"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd

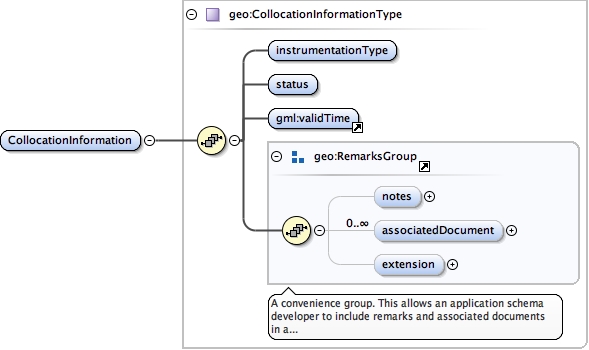

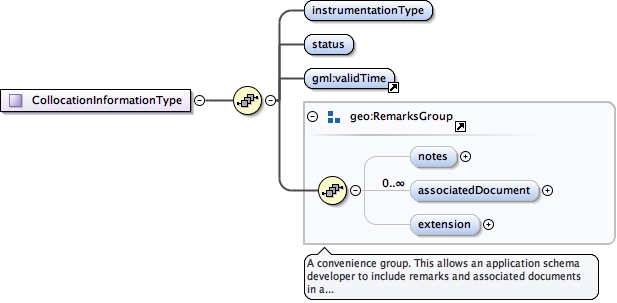

Element geo:CollocationInformation
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram equipment_xsd.tmp#CollocationInformationType_instrumentationType equipment_xsd.tmp#CollocationInformationType_status commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup equipment_xsd.tmp#CollocationInformationType
Type geo:CollocationInformationType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
  • AbstractGML
Used by
Model
Children geo:associatedDocument, geo:extension, geo:instrumentationType, geo:notes, geo:status, validTime
Instance

<geo:CollocationInformation xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <geo:instrumentationType>{1,1}</geo:instrumentationType>
  <geo:status>{1,1}</geo:status>
  <validTime>{1,1}</validTime>
  <geo:notes>{0,1}</geo:notes>
  <geo:associatedDocument>{0,unbounded}</geo:associatedDocument>
  <geo:extension>{0,1}</geo:extension>
</geo:CollocationInformation>
Source

<element name="CollocationInformation" substitutionGroup="gml:AbstractGML" type="geo:CollocationInformationType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:CollocationInformationType / geo:instrumentationType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type CodeType
Properties
content simple
Source

<element name="instrumentationType" type="gml:CodeType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:CollocationInformationType / geo:status
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type CodeType
Properties
content simple
Source

<element name="status" type="gml:CodeType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd

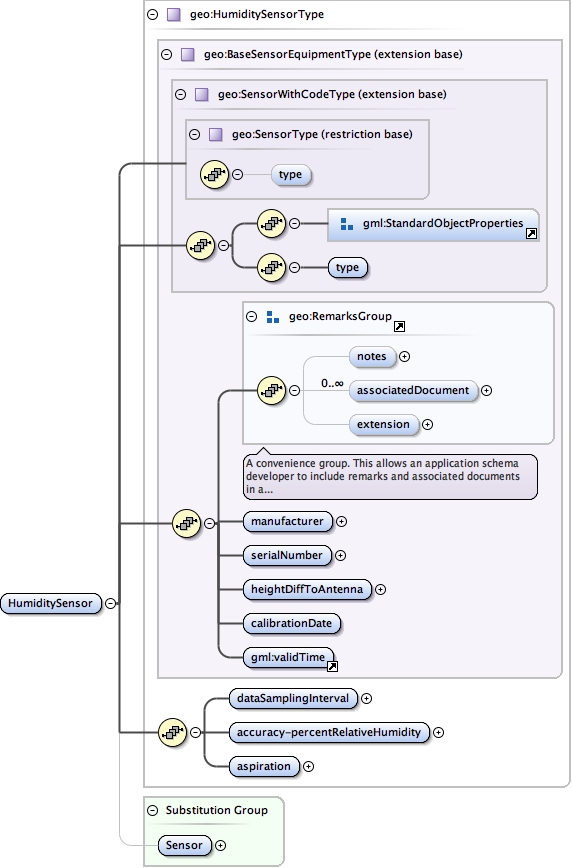

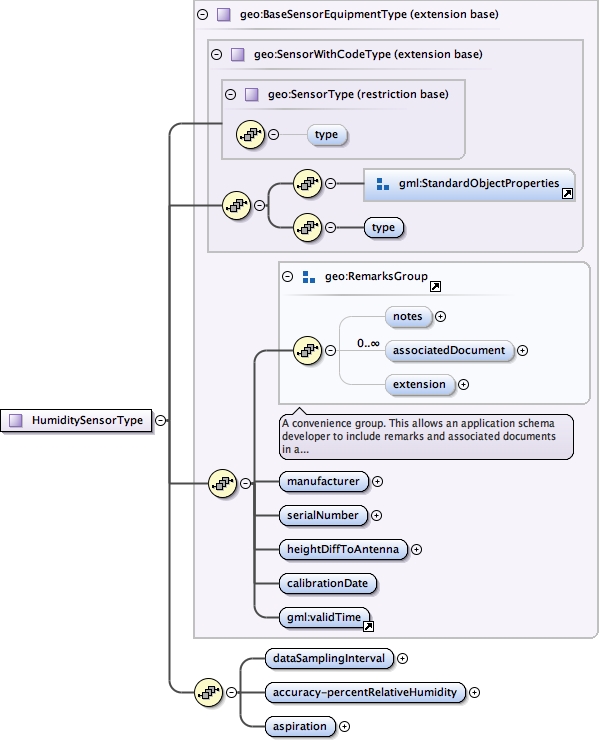

Element geo:HumiditySensor
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram fieldMeasurement_xsd.tmp#SensorType_type fieldMeasurement_xsd.tmp#SensorType equipment_xsd.tmp#SensorWithCodeType_type equipment_xsd.tmp#SensorWithCodeType commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup equipment_xsd.tmp#BaseSensorEquipmentType_manufacturer equipment_xsd.tmp#BaseSensorEquipmentType_serialNumber equipment_xsd.tmp#BaseSensorEquipmentType_heightDiffToAntenna equipment_xsd.tmp#BaseSensorEquipmentType_calibrationDate equipment_xsd.tmp#BaseSensorEquipmentType equipment_xsd.tmp#HumiditySensorType_dataSamplingInterval equipment_xsd.tmp#HumiditySensorType_accuracy-percentRelativeHumidity equipment_xsd.tmp#HumiditySensorType_aspiration equipment_xsd.tmp#HumiditySensorType fieldMeasurement_xsd.tmp#Sensor
Type geo:HumiditySensorType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children geo:accuracy-percentRelativeHumidity, geo:aspiration, geo:associatedDocument, geo:calibrationDate, geo:dataSamplingInterval, geo:extension, geo:heightDiffToAntenna, geo:manufacturer, geo:notes, geo:serialNumber, geo:type, validTime
Instance

<geo:HumiditySensor xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <geo:type>{1,1}</geo:type>
  <geo:notes>{0,1}</geo:notes>
  <geo:associatedDocument>{0,unbounded}</geo:associatedDocument>
  <geo:extension>{0,1}</geo:extension>
  <geo:manufacturer>{1,1}</geo:manufacturer>
  <geo:serialNumber>{1,1}</geo:serialNumber>
  <geo:heightDiffToAntenna>{1,1}</geo:heightDiffToAntenna>
  <geo:calibrationDate>{1,1}</geo:calibrationDate>
  <validTime>{1,1}</validTime>
  <geo:dataSamplingInterval>{1,1}</geo:dataSamplingInterval>
  <geo:accuracy-percentRelativeHumidity>{1,1}</geo:accuracy-percentRelativeHumidity>
  <geo:aspiration>{1,1}</geo:aspiration>
</geo:HumiditySensor>
Source

<element name="HumiditySensor" substitutionGroup="geo:Sensor" type="geo:HumiditySensorType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd

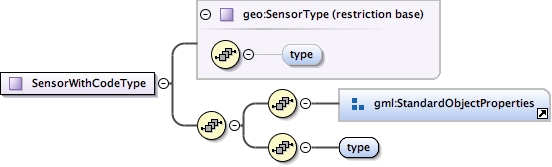

Element geo:SensorWithCodeType / geo:type
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type CodeType
Properties
content simple
Source

<element name="type" type="gml:CodeType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd

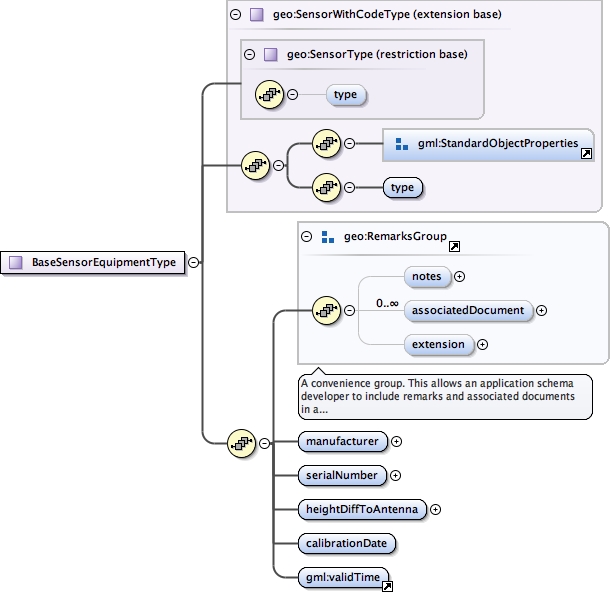

Element geo:BaseSensorEquipmentType / geo:manufacturer
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type string
Properties
content simple
Source

<element name="manufacturer" type="string"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:BaseSensorEquipmentType / geo:serialNumber
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type string
Properties
content simple
Source

<element name="serialNumber" type="string"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:BaseSensorEquipmentType / geo:heightDiffToAntenna
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type double
Properties
content simple
Source

<element name="heightDiffToAntenna" type="double"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:BaseSensorEquipmentType / geo:calibrationDate
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type TimePositionType
Properties
content simple
Source

<element name="calibrationDate" type="gml:TimePositionType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:HumiditySensorType / geo:dataSamplingInterval
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type double
Properties
content simple
Source

<element name="dataSamplingInterval" type="double"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:HumiditySensorType / geo:accuracy-percentRelativeHumidity
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type double
Properties
content simple
Source

<element name="accuracy-percentRelativeHumidity" type="double"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:HumiditySensorType / geo:aspiration
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type string
Properties
content simple
Source

<element name="aspiration" type="string"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd

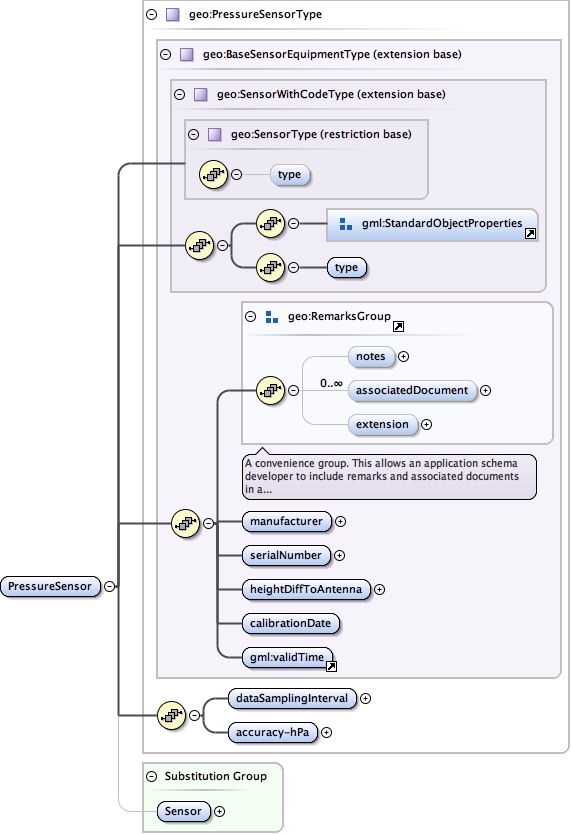

Element geo:PressureSensor
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram fieldMeasurement_xsd.tmp#SensorType_type fieldMeasurement_xsd.tmp#SensorType equipment_xsd.tmp#SensorWithCodeType_type equipment_xsd.tmp#SensorWithCodeType commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup equipment_xsd.tmp#BaseSensorEquipmentType_manufacturer equipment_xsd.tmp#BaseSensorEquipmentType_serialNumber equipment_xsd.tmp#BaseSensorEquipmentType_heightDiffToAntenna equipment_xsd.tmp#BaseSensorEquipmentType_calibrationDate equipment_xsd.tmp#BaseSensorEquipmentType equipment_xsd.tmp#PressureSensorType_dataSamplingInterval equipment_xsd.tmp#PressureSensorType_accuracy-hPa equipment_xsd.tmp#PressureSensorType fieldMeasurement_xsd.tmp#Sensor
Type geo:PressureSensorType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children geo:accuracy-hPa, geo:associatedDocument, geo:calibrationDate, geo:dataSamplingInterval, geo:extension, geo:heightDiffToAntenna, geo:manufacturer, geo:notes, geo:serialNumber, geo:type, validTime
Instance

<geo:PressureSensor xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <geo:type>{1,1}</geo:type>
  <geo:notes>{0,1}</geo:notes>
  <geo:associatedDocument>{0,unbounded}</geo:associatedDocument>
  <geo:extension>{0,1}</geo:extension>
  <geo:manufacturer>{1,1}</geo:manufacturer>
  <geo:serialNumber>{1,1}</geo:serialNumber>
  <geo:heightDiffToAntenna>{1,1}</geo:heightDiffToAntenna>
  <geo:calibrationDate>{1,1}</geo:calibrationDate>
  <validTime>{1,1}</validTime>
  <geo:dataSamplingInterval>{1,1}</geo:dataSamplingInterval>
  <geo:accuracy-hPa>{1,1}</geo:accuracy-hPa>
</geo:PressureSensor>
Source

<element name="PressureSensor" substitutionGroup="geo:Sensor" type="geo:PressureSensorType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:PressureSensorType / geo:dataSamplingInterval
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type double
Properties
content simple
Source

<element name="dataSamplingInterval" type="double"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:PressureSensorType / geo:accuracy-hPa
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type double
Properties
content simple
Source

<element name="accuracy-hPa" type="double"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd

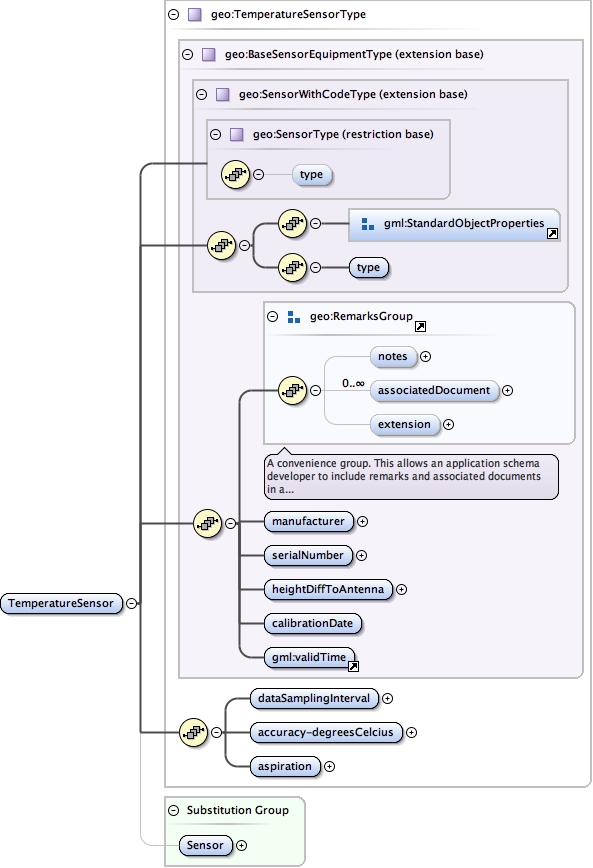

Element geo:TemperatureSensor
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram fieldMeasurement_xsd.tmp#SensorType_type fieldMeasurement_xsd.tmp#SensorType equipment_xsd.tmp#SensorWithCodeType_type equipment_xsd.tmp#SensorWithCodeType commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup equipment_xsd.tmp#BaseSensorEquipmentType_manufacturer equipment_xsd.tmp#BaseSensorEquipmentType_serialNumber equipment_xsd.tmp#BaseSensorEquipmentType_heightDiffToAntenna equipment_xsd.tmp#BaseSensorEquipmentType_calibrationDate equipment_xsd.tmp#BaseSensorEquipmentType equipment_xsd.tmp#TemperatureSensorType_dataSamplingInterval equipment_xsd.tmp#TemperatureSensorType_accuracy-degreesCelcius equipment_xsd.tmp#TemperatureSensorType_aspiration equipment_xsd.tmp#TemperatureSensorType fieldMeasurement_xsd.tmp#Sensor
Type geo:TemperatureSensorType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children geo:accuracy-degreesCelcius, geo:aspiration, geo:associatedDocument, geo:calibrationDate, geo:dataSamplingInterval, geo:extension, geo:heightDiffToAntenna, geo:manufacturer, geo:notes, geo:serialNumber, geo:type, validTime
Instance

<geo:TemperatureSensor xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <geo:type>{1,1}</geo:type>
  <geo:notes>{0,1}</geo:notes>
  <geo:associatedDocument>{0,unbounded}</geo:associatedDocument>
  <geo:extension>{0,1}</geo:extension>
  <geo:manufacturer>{1,1}</geo:manufacturer>
  <geo:serialNumber>{1,1}</geo:serialNumber>
  <geo:heightDiffToAntenna>{1,1}</geo:heightDiffToAntenna>
  <geo:calibrationDate>{1,1}</geo:calibrationDate>
  <validTime>{1,1}</validTime>
  <geo:dataSamplingInterval>{1,1}</geo:dataSamplingInterval>
  <geo:accuracy-degreesCelcius>{1,1}</geo:accuracy-degreesCelcius>
  <geo:aspiration>{1,1}</geo:aspiration>
</geo:TemperatureSensor>
Source

<element name="TemperatureSensor" substitutionGroup="geo:Sensor" type="geo:TemperatureSensorType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:TemperatureSensorType / geo:dataSamplingInterval
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type double
Properties
content simple
Source

<element name="dataSamplingInterval" type="double"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:TemperatureSensorType / geo:accuracy-degreesCelcius
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type double
Properties
content simple
Source

<element name="accuracy-degreesCelcius" type="double"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:TemperatureSensorType / geo:aspiration
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type string
Properties
content simple
Source

<element name="aspiration" type="string"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:WaterVaporSensor
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram fieldMeasurement_xsd.tmp#SensorType_type fieldMeasurement_xsd.tmp#SensorType equipment_xsd.tmp#SensorWithCodeType_type equipment_xsd.tmp#SensorWithCodeType commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup equipment_xsd.tmp#BaseSensorEquipmentType_manufacturer equipment_xsd.tmp#BaseSensorEquipmentType_serialNumber equipment_xsd.tmp#BaseSensorEquipmentType_heightDiffToAntenna equipment_xsd.tmp#BaseSensorEquipmentType_calibrationDate equipment_xsd.tmp#BaseSensorEquipmentType equipment_xsd.tmp#WaterVaporSensorType_distanceToAntenna equipment_xsd.tmp#WaterVaporSensorType fieldMeasurement_xsd.tmp#Sensor
Type geo:WaterVaporSensorType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children geo:associatedDocument, geo:calibrationDate, geo:distanceToAntenna, geo:extension, geo:heightDiffToAntenna, geo:manufacturer, geo:notes, geo:serialNumber, geo:type, validTime
Instance

<geo:WaterVaporSensor xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <geo:type>{1,1}</geo:type>
  <geo:notes>{0,1}</geo:notes>
  <geo:associatedDocument>{0,unbounded}</geo:associatedDocument>
  <geo:extension>{0,1}</geo:extension>
  <geo:manufacturer>{1,1}</geo:manufacturer>
  <geo:serialNumber>{1,1}</geo:serialNumber>
  <geo:heightDiffToAntenna>{1,1}</geo:heightDiffToAntenna>
  <geo:calibrationDate>{1,1}</geo:calibrationDate>
  <validTime>{1,1}</validTime>
  <geo:distanceToAntenna>{1,1}</geo:distanceToAntenna>
</geo:WaterVaporSensor>
Source

<element name="WaterVaporSensor" substitutionGroup="geo:Sensor" type="geo:WaterVaporSensorType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:WaterVaporSensorType / geo:distanceToAntenna
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type double
Properties
content simple
Source

<element name="distanceToAntenna" type="double"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd

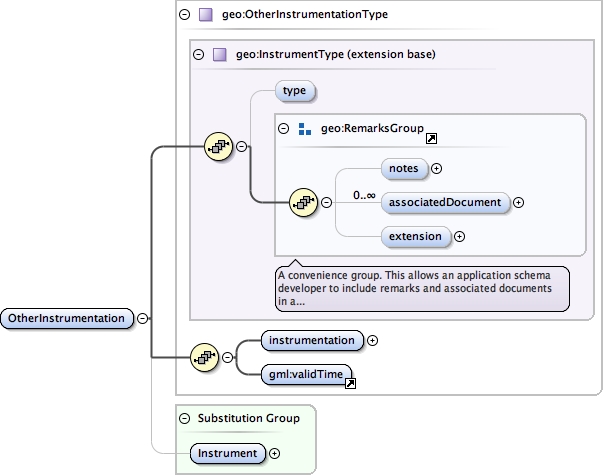

Element geo:OtherInstrumentation
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram commonTypes_xsd.tmp#InstrumentType_type commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup commonTypes_xsd.tmp#InstrumentType equipment_xsd.tmp#OtherInstrumentationType_instrumentation equipment_xsd.tmp#OtherInstrumentationType commonTypes_xsd.tmp#Instrument
Type geo:OtherInstrumentationType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children geo:associatedDocument, geo:extension, geo:instrumentation, geo:notes, geo:type, validTime
Instance

<geo:OtherInstrumentation xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <geo:type>{0,1}</geo:type>
  <geo:notes>{0,1}</geo:notes>
  <geo:associatedDocument>{0,unbounded}</geo:associatedDocument>
  <geo:extension>{0,1}</geo:extension>
  <geo:instrumentation>{1,1}</geo:instrumentation>
  <validTime>{1,1}</validTime>
</geo:OtherInstrumentation>
Source

<element name="OtherInstrumentation" substitutionGroup="geo:Instrument" type="geo:OtherInstrumentationType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:OtherInstrumentationType / geo:instrumentation
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type string
Properties
content simple
Source

<element name="instrumentation" type="string"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Element geo:antennaReferencePoint
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type CodeType
Properties
content simple
Source

<element name="antennaReferencePoint" type="gml:CodeType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd

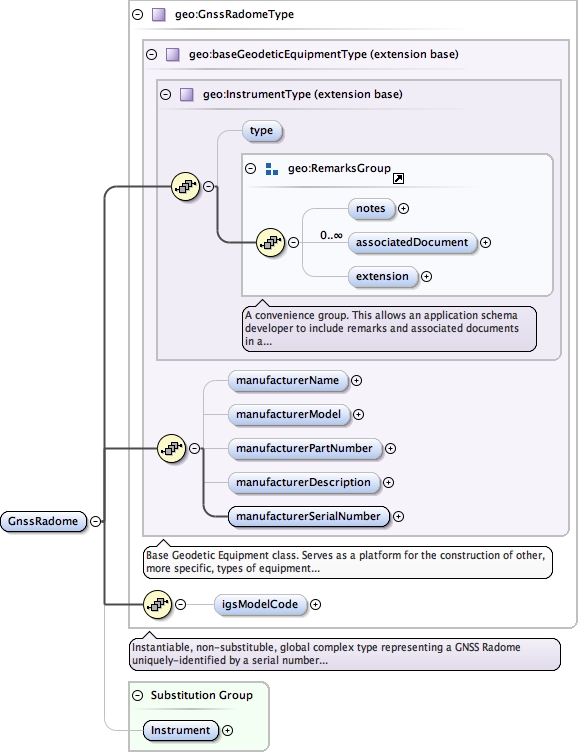

Element geo:GnssRadome
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram commonTypes_xsd.tmp#InstrumentType_type commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup commonTypes_xsd.tmp#InstrumentType geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType_manufacturerName geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType_manufacturerModel geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType_manufacturerPartNumber geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType_manufacturerDescription geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType_manufacturerSerialNumber geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType geodeticEquipment_xsd.tmp#GnssRadomeType_igsModelCode geodeticEquipment_xsd.tmp#GnssRadomeType commonTypes_xsd.tmp#Instrument
Type geo:GnssRadomeType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children geo:associatedDocument, geo:extension, geo:igsModelCode, geo:manufacturerDescription, geo:manufacturerModel, geo:manufacturerName, geo:manufacturerPartNumber, geo:manufacturerSerialNumber, geo:notes, geo:type
Instance

<geo:GnssRadome xmlns:geo="urn:xml-gov-au:icsm:egeodesy:0.4">
  <geo:type>{0,1}</geo:type>
  <geo:notes>{0,1}</geo:notes>
  <geo:associatedDocument>{0,unbounded}</geo:associatedDocument>
  <geo:extension>{0,1}</geo:extension>
  <geo:manufacturerName>{0,1}</geo:manufacturerName>
  <geo:manufacturerModel>{0,1}</geo:manufacturerModel>
  <geo:manufacturerPartNumber>{0,1}</geo:manufacturerPartNumber>
  <geo:manufacturerDescription>{0,1}</geo:manufacturerDescription>
  <geo:manufacturerSerialNumber>{1,1}</geo:manufacturerSerialNumber>
  <geo:igsModelCode>{0,1}</geo:igsModelCode>
</geo:GnssRadome>
Source

<element name="GnssRadome" substitutionGroup="geo:Instrument" type="geo:GnssRadomeType"/>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Complex Type geo:gnssReceiverPropertyType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram equipment_xsd.tmp#GnssReceiver commonTypes_xsd.tmp#ChangeTracking_dateInserted commonTypes_xsd.tmp#ChangeTracking_dateDeleted commonTypes_xsd.tmp#ChangeTracking_deletedReason commonTypes_xsd.tmp#ChangeTracking
Used by
Model
Children geo:GnssReceiver, geo:dateDeleted, geo:dateInserted, geo:deletedReason
Source

<complexType name="gnssReceiverPropertyType">
  <sequence>
    <sequence minOccurs="0">
      <element ref="geo:GnssReceiver"/>
    </sequence>
    <group ref="geo:ChangeTracking"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Complex Type geo:GnssReceiverType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram commonTypes_xsd.tmp#InstrumentType_type commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup commonTypes_xsd.tmp#InstrumentType geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType_manufacturerName geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType_manufacturerModel geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType_manufacturerPartNumber geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType_manufacturerDescription geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType_manufacturerSerialNumber geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType geodeticEquipment_xsd.tmp#AbstractGNSSReceiverType_igsModelCode geodeticEquipment_xsd.tmp#AbstractGNSSReceiverType equipment_xsd.tmp#GnssReceiverType_satelliteSystem equipment_xsd.tmp#GnssReceiverType_firmwareVersion equipment_xsd.tmp#GnssReceiverType_elevationCutoffSetting equipment_xsd.tmp#GnssReceiverType_dateInstalled equipment_xsd.tmp#GnssReceiverType_dateRemoved equipment_xsd.tmp#GnssReceiverType_temperatureStabilization
Type extension of geo:AbstractGNSSReceiverType
Type hierarchy
Used by
Model
Children geo:associatedDocument, geo:dateInstalled, geo:dateRemoved, geo:elevationCutoffSetting, geo:extension, geo:firmwareVersion, geo:igsModelCode, geo:manufacturerDescription, geo:manufacturerModel, geo:manufacturerName, geo:manufacturerPartNumber, geo:manufacturerSerialNumber, geo:notes, geo:satelliteSystem, geo:temperatureStabilization, geo:type
Source

<complexType name="GnssReceiverType">
  <complexContent>
    <extension base="geo:AbstractGNSSReceiverType">
      <sequence>
        <!-- TODO: use gco -->
        <element maxOccurs="unbounded" name="satelliteSystem" type="gml:CodeType"/>
        <element name="firmwareVersion" type="string"/>
        <element name="elevationCutoffSetting" type="double" nillable="true"/>
        <element name="dateInstalled" type="gml:TimePositionType"/>
        <element name="dateRemoved" type="gml:TimePositionType"/>
        <element name="temperatureStabilization" type="double" nillable="true"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Complex Type geo:gnssAntennaPropertyType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram equipment_xsd.tmp#GnssAntenna commonTypes_xsd.tmp#ChangeTracking_dateInserted commonTypes_xsd.tmp#ChangeTracking_dateDeleted commonTypes_xsd.tmp#ChangeTracking_deletedReason commonTypes_xsd.tmp#ChangeTracking
Used by
Model
Children geo:GnssAntenna, geo:dateDeleted, geo:dateInserted, geo:deletedReason
Source

<complexType name="gnssAntennaPropertyType">
  <sequence>
    <sequence minOccurs="0">
      <element ref="geo:GnssAntenna"/>
    </sequence>
    <group ref="geo:ChangeTracking"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Complex Type geo:GnssAntennaType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram commonTypes_xsd.tmp#InstrumentType_type commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup commonTypes_xsd.tmp#InstrumentType geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType_manufacturerName geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType_manufacturerModel geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType_manufacturerPartNumber geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType_manufacturerDescription geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType_manufacturerSerialNumber geodeticEquipment_xsd.tmp#baseGeodeticEquipmentType geodeticEquipment_xsd.tmp#AbstractGNSSAntennaType_igsModelCode geodeticEquipment_xsd.tmp#AbstractGNSSAntennaType equipment_xsd.tmp#GnssAntennaType_antennaReferencePoint equipment_xsd.tmp#GnssAntennaType_marker-arpUpEcc. equipment_xsd.tmp#GnssAntennaType_marker-arpNorthEcc. equipment_xsd.tmp#GnssAntennaType_marker-arpEastEcc. equipment_xsd.tmp#GnssAntennaType_alignmentFromTrueNorth equipment_xsd.tmp#GnssAntennaType_antennaRadomeType equipment_xsd.tmp#GnssAntennaType_radomeSerialNumber equipment_xsd.tmp#GnssAntennaType_antennaCableType equipment_xsd.tmp#GnssAntennaType_antennaCableLength equipment_xsd.tmp#GnssAntennaType_dateInstalled equipment_xsd.tmp#GnssAntennaType_dateRemoved
Type extension of geo:AbstractGNSSAntennaType
Type hierarchy
Used by
Element geo:GnssAntenna
Model
Children geo:alignmentFromTrueNorth, geo:antennaCableLength, geo:antennaCableType, geo:antennaRadomeType, geo:antennaReferencePoint, geo:associatedDocument, geo:dateInstalled, geo:dateRemoved, geo:extension, geo:igsModelCode, geo:manufacturerDescription, geo:manufacturerModel, geo:manufacturerName, geo:manufacturerPartNumber, geo:manufacturerSerialNumber, geo:marker-arpEastEcc., geo:marker-arpNorthEcc., geo:marker-arpUpEcc., geo:notes, geo:radomeSerialNumber, geo:type
Source

<complexType name="GnssAntennaType">
  <complexContent>
    <extension base="geo:AbstractGNSSAntennaType">
      <sequence>
        <!-- TODO: use gco code list values -->
        <element name="antennaReferencePoint" type="gml:CodeType"/>
        <element name="marker-arpUpEcc." type="double" nillable="true"/>
        <element name="marker-arpNorthEcc." type="double" nillable="true"/>
        <element name="marker-arpEastEcc." type="double" nillable="true"/>
        <element name="alignmentFromTrueNorth" type="double" nillable="true"/>
        <element name="antennaRadomeType" type="geo:igsRadomeModelCodeType"/>
        <element name="radomeSerialNumber" type="string"/>
        <element name="antennaCableType" type="string"/>
        <element name="antennaCableLength" type="double" nillable="true"/>
        <element name="dateInstalled" type="gml:TimePositionType"/>
        <element name="dateRemoved" type="gml:TimePositionType"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd

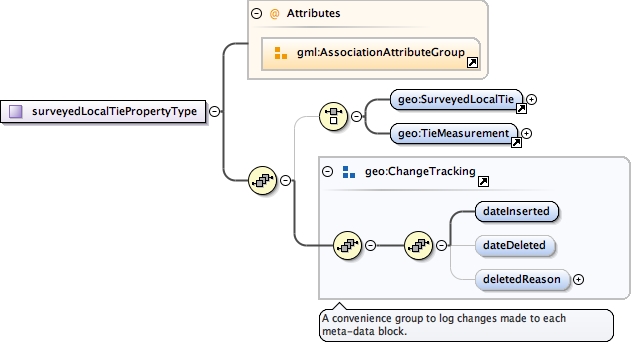

Complex Type geo:surveyedLocalTiePropertyType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram equipment_xsd.tmp#SurveyedLocalTie equipment_xsd.tmp#TieMeasurement commonTypes_xsd.tmp#ChangeTracking_dateInserted commonTypes_xsd.tmp#ChangeTracking_dateDeleted commonTypes_xsd.tmp#ChangeTracking_deletedReason commonTypes_xsd.tmp#ChangeTracking
Used by
Model
Children geo:SurveyedLocalTie, geo:TieMeasurement, geo:dateDeleted, geo:dateInserted, geo:deletedReason
Source

<complexType name="surveyedLocalTiePropertyType">
  <sequence>
    <choice minOccurs="0">
      <element ref="geo:SurveyedLocalTie"/>
      <element ref="geo:TieMeasurement"/>
    </choice>
    <group ref="geo:ChangeTracking"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Complex Type geo:SurveyedLocalTieType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram equipment_xsd.tmp#SurveyedLocalTieType_tiedMarkerName equipment_xsd.tmp#SurveyedLocalTieType_tiedMarkerUsage equipment_xsd.tmp#SurveyedLocalTieType_tiedMarkerCDPNumber equipment_xsd.tmp#SurveyedLocalTieType_tiedMarkerDOMESNumber equipment_xsd.tmp#SurveyedLocalTieType_differentialComponentsGNSSMarkerToTiedMonumentITRS equipment_xsd.tmp#SurveyedLocalTieType_localSiteTiesAccuracy equipment_xsd.tmp#SurveyedLocalTieType_surveyMethod equipment_xsd.tmp#SurveyedLocalTieType_dateMeasured commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup
Type extension of AbstractFeatureType
Type hierarchy
Used by
Model
Children geo:associatedDocument, geo:dateMeasured, geo:differentialComponentsGNSSMarkerToTiedMonumentITRS, geo:extension, geo:localSiteTiesAccuracy, geo:notes, geo:surveyMethod, geo:tiedMarkerCDPNumber, geo:tiedMarkerDOMESNumber, geo:tiedMarkerName, geo:tiedMarkerUsage
Source

<complexType name="SurveyedLocalTieType">
  <complexContent>
    <extension base="gml:AbstractFeatureType">
      <sequence>
        <element name="tiedMarkerName" type="string"/>
        <element name="tiedMarkerUsage" type="string"/>
        <element name="tiedMarkerCDPNumber" type="string"/>
        <element name="tiedMarkerDOMESNumber" type="string"/>
        <element name="differentialComponentsGNSSMarkerToTiedMonumentITRS">
          <complexType>
            <sequence>
              <element name="dx" type="double"/>
              <element name="dy" type="double"/>
              <element name="dz" type="double"/>
            </sequence>
          </complexType>
        </element>
        <element name="localSiteTiesAccuracy" type="double" nillable="true"/>
        <element name="surveyMethod" type="string"/>
        <element name="dateMeasured" type="gml:TimePositionType"/>
        <group ref="geo:RemarksGroup"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Complex Type geo:TieMeasurementType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram measurement_xsd.tmp#AbstractMeasurementType_aprioriScalar measurement_xsd.tmp#AbstractMeasurementType_fromProject measurement_xsd.tmp#AbstractMeasurementType_source commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup measurement_xsd.tmp#AbstractMeasurementType commonTypes_xsd.tmp#RequiredSRSReferenceGroup equipment_xsd.tmp#TieMeasurementType_Tie equipment_xsd.tmp#TieMeasurementType_tiePairQuality
Type extension of geo:AbstractMeasurementType
Type hierarchy
Used by
Model
Children geo:Tie, geo:aprioriScalar, geo:associatedDocument, geo:extension, geo:fromProject, geo:notes, geo:source, geo:tiePairQuality, validTime
Attributes
QName Type Use
srsDimension positiveInteger optional
srsName anyURI required
Source

<complexType name="TieMeasurementType">
  <complexContent>
    <extension base="geo:AbstractMeasurementType">
      <sequence>
        <element maxOccurs="unbounded" name="Tie" type="geo:MeasurementLineType"/>
        <element maxOccurs="unbounded" minOccurs="0" name="tiePairQuality" type="geo:MeasurementLineCovarianceType"/>
      </sequence>
      <attributeGroup ref="geo:RequiredSRSReferenceGroup"/>
    </extension>
  </complexContent>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Complex Type geo:frequencyStandardPropertyType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram equipment_xsd.tmp#FrequencyStandard commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup commonTypes_xsd.tmp#ChangeTracking_dateInserted commonTypes_xsd.tmp#ChangeTracking_dateDeleted commonTypes_xsd.tmp#ChangeTracking_deletedReason commonTypes_xsd.tmp#ChangeTracking
Used by
Model
Children geo:FrequencyStandard, geo:associatedDocument, geo:dateDeleted, geo:dateInserted, geo:deletedReason, geo:extension, geo:notes
Source

<complexType name="frequencyStandardPropertyType">
  <sequence>
    <sequence minOccurs="0">
      <element ref="geo:FrequencyStandard"/>
      <group ref="geo:RemarksGroup"/>
    </sequence>
    <group ref="geo:ChangeTracking"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Complex Type geo:FrequencyStandardType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram equipment_xsd.tmp#FrequencyStandardType_standardType equipment_xsd.tmp#FrequencyStandardType_inputFrequency commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup
Type extension of AbstractGMLType
Type hierarchy
Used by
Model
Children geo:associatedDocument, geo:extension, geo:inputFrequency, geo:notes, geo:standardType, validTime
Source

<complexType name="FrequencyStandardType">
  <complexContent>
    <extension base="gml:AbstractGMLType">
      <sequence>
        <!-- TODO: use gco -->
        <element name="standardType" type="gml:CodeType"/>
        <element minOccurs="0" name="inputFrequency" type="double"/>
        <element ref="gml:validTime"/>
        <group ref="geo:RemarksGroup"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd

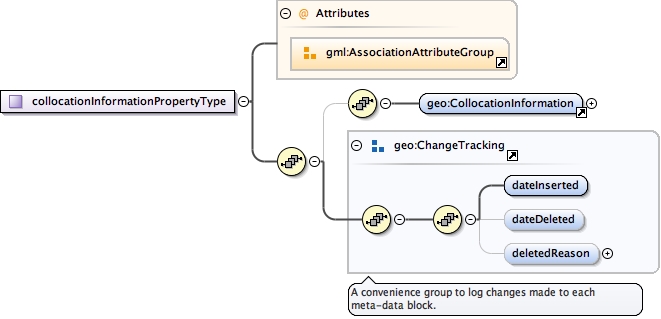

Complex Type geo:collocationInformationPropertyType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram equipment_xsd.tmp#CollocationInformation commonTypes_xsd.tmp#ChangeTracking_dateInserted commonTypes_xsd.tmp#ChangeTracking_dateDeleted commonTypes_xsd.tmp#ChangeTracking_deletedReason commonTypes_xsd.tmp#ChangeTracking
Used by
Model
Children geo:CollocationInformation, geo:dateDeleted, geo:dateInserted, geo:deletedReason
Source

<complexType name="collocationInformationPropertyType">
  <sequence>
    <sequence minOccurs="0">
      <element ref="geo:CollocationInformation"/>
    </sequence>
    <group ref="geo:ChangeTracking"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Complex Type geo:CollocationInformationType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram equipment_xsd.tmp#CollocationInformationType_instrumentationType equipment_xsd.tmp#CollocationInformationType_status commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup
Type extension of AbstractGMLType
Type hierarchy
Used by
Model
Children geo:associatedDocument, geo:extension, geo:instrumentationType, geo:notes, geo:status, validTime
Source

<complexType name="CollocationInformationType">
  <complexContent>
    <extension base="gml:AbstractGMLType">
      <sequence>
        <!-- TODO: use gco code list values -->
        <element name="instrumentationType" type="gml:CodeType"/>
        <element name="status" type="gml:CodeType"/>
        <element ref="gml:validTime"/>
        <group ref="geo:RemarksGroup"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Complex Type geo:humiditySensorPropertyType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram equipment_xsd.tmp#HumiditySensor commonTypes_xsd.tmp#ChangeTracking_dateInserted commonTypes_xsd.tmp#ChangeTracking_dateDeleted commonTypes_xsd.tmp#ChangeTracking_deletedReason commonTypes_xsd.tmp#ChangeTracking
Used by
Model
Children geo:HumiditySensor, geo:dateDeleted, geo:dateInserted, geo:deletedReason
Source

<complexType name="humiditySensorPropertyType">
  <sequence>
    <sequence minOccurs="0">
      <element ref="geo:HumiditySensor"/>
    </sequence>
    <group ref="geo:ChangeTracking"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Complex Type geo:HumiditySensorType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram fieldMeasurement_xsd.tmp#SensorType_type fieldMeasurement_xsd.tmp#SensorType equipment_xsd.tmp#SensorWithCodeType_type equipment_xsd.tmp#SensorWithCodeType commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup equipment_xsd.tmp#BaseSensorEquipmentType_manufacturer equipment_xsd.tmp#BaseSensorEquipmentType_serialNumber equipment_xsd.tmp#BaseSensorEquipmentType_heightDiffToAntenna equipment_xsd.tmp#BaseSensorEquipmentType_calibrationDate equipment_xsd.tmp#BaseSensorEquipmentType equipment_xsd.tmp#HumiditySensorType_dataSamplingInterval equipment_xsd.tmp#HumiditySensorType_accuracy-percentRelativeHumidity equipment_xsd.tmp#HumiditySensorType_aspiration
Type extension of geo:BaseSensorEquipmentType
Type hierarchy
Used by
Model
Children geo:accuracy-percentRelativeHumidity, geo:aspiration, geo:associatedDocument, geo:calibrationDate, geo:dataSamplingInterval, geo:extension, geo:heightDiffToAntenna, geo:manufacturer, geo:notes, geo:serialNumber, geo:type, validTime
Source

<complexType name="HumiditySensorType">
  <complexContent>
    <extension base="geo:BaseSensorEquipmentType">
      <sequence>
        <element name="dataSamplingInterval" type="double"/>
        <element name="accuracy-percentRelativeHumidity" type="double"/>
        <element name="aspiration" type="string"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Complex Type geo:BaseSensorEquipmentType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram fieldMeasurement_xsd.tmp#SensorType_type fieldMeasurement_xsd.tmp#SensorType equipment_xsd.tmp#SensorWithCodeType_type equipment_xsd.tmp#SensorWithCodeType commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup equipment_xsd.tmp#BaseSensorEquipmentType_manufacturer equipment_xsd.tmp#BaseSensorEquipmentType_serialNumber equipment_xsd.tmp#BaseSensorEquipmentType_heightDiffToAntenna equipment_xsd.tmp#BaseSensorEquipmentType_calibrationDate
Type extension of geo:SensorWithCodeType
Type hierarchy
Used by
Model
Children geo:associatedDocument, geo:calibrationDate, geo:extension, geo:heightDiffToAntenna, geo:manufacturer, geo:notes, geo:serialNumber, geo:type, validTime
Source

<complexType name="BaseSensorEquipmentType">
  <complexContent>
    <extension base="geo:SensorWithCodeType">
      <sequence>
        <group ref="geo:RemarksGroup"/>
        <element name="manufacturer" type="string"/>
        <element name="serialNumber" type="string"/>
        <element name="heightDiffToAntenna" type="double"/>
        <element name="calibrationDate" type="gml:TimePositionType"/>
        <element ref="gml:validTime"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Complex Type geo:SensorWithCodeType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram fieldMeasurement_xsd.tmp#SensorType_type fieldMeasurement_xsd.tmp#SensorType equipment_xsd.tmp#SensorWithCodeType_type
Type restriction of geo:SensorType
Type hierarchy
Used by
Model
Children geo:type
Source

<complexType name="SensorWithCodeType">
  <complexContent>
    <restriction base="geo:SensorType">
      <sequence>
        <sequence>
          <group ref="gml:StandardObjectProperties"/>
        </sequence>
        <sequence>
          <element name="type" type="gml:CodeType"/>
        </sequence>
      </sequence>
    </restriction>
  </complexContent>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd

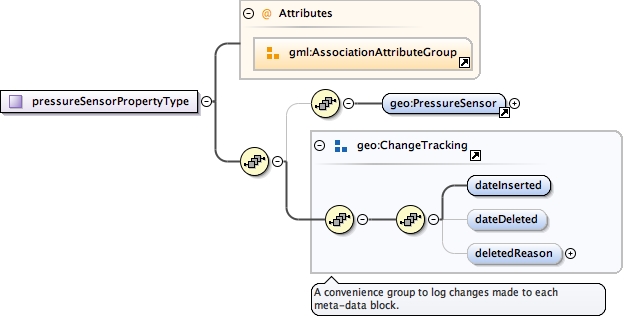

Complex Type geo:pressureSensorPropertyType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram equipment_xsd.tmp#PressureSensor commonTypes_xsd.tmp#ChangeTracking_dateInserted commonTypes_xsd.tmp#ChangeTracking_dateDeleted commonTypes_xsd.tmp#ChangeTracking_deletedReason commonTypes_xsd.tmp#ChangeTracking
Used by
Model
Children geo:PressureSensor, geo:dateDeleted, geo:dateInserted, geo:deletedReason
Source

<complexType name="pressureSensorPropertyType">
  <sequence>
    <sequence minOccurs="0">
      <element ref="geo:PressureSensor"/>
    </sequence>
    <group ref="geo:ChangeTracking"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Complex Type geo:PressureSensorType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram fieldMeasurement_xsd.tmp#SensorType_type fieldMeasurement_xsd.tmp#SensorType equipment_xsd.tmp#SensorWithCodeType_type equipment_xsd.tmp#SensorWithCodeType commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup equipment_xsd.tmp#BaseSensorEquipmentType_manufacturer equipment_xsd.tmp#BaseSensorEquipmentType_serialNumber equipment_xsd.tmp#BaseSensorEquipmentType_heightDiffToAntenna equipment_xsd.tmp#BaseSensorEquipmentType_calibrationDate equipment_xsd.tmp#BaseSensorEquipmentType equipment_xsd.tmp#PressureSensorType_dataSamplingInterval equipment_xsd.tmp#PressureSensorType_accuracy-hPa
Type extension of geo:BaseSensorEquipmentType
Type hierarchy
Used by
Model
Children geo:accuracy-hPa, geo:associatedDocument, geo:calibrationDate, geo:dataSamplingInterval, geo:extension, geo:heightDiffToAntenna, geo:manufacturer, geo:notes, geo:serialNumber, geo:type, validTime
Source

<complexType name="PressureSensorType">
  <complexContent>
    <extension base="geo:BaseSensorEquipmentType">
      <sequence>
        <element name="dataSamplingInterval" type="double"/>
        <element name="accuracy-hPa" type="double"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Complex Type geo:temperatureSensorPropertyType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram equipment_xsd.tmp#TemperatureSensor commonTypes_xsd.tmp#ChangeTracking_dateInserted commonTypes_xsd.tmp#ChangeTracking_dateDeleted commonTypes_xsd.tmp#ChangeTracking_deletedReason commonTypes_xsd.tmp#ChangeTracking
Used by
Model
Children geo:TemperatureSensor, geo:dateDeleted, geo:dateInserted, geo:deletedReason
Source

<complexType name="temperatureSensorPropertyType">
  <sequence>
    <sequence minOccurs="0">
      <element ref="geo:TemperatureSensor"/>
    </sequence>
    <group ref="geo:ChangeTracking"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Complex Type geo:TemperatureSensorType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram fieldMeasurement_xsd.tmp#SensorType_type fieldMeasurement_xsd.tmp#SensorType equipment_xsd.tmp#SensorWithCodeType_type equipment_xsd.tmp#SensorWithCodeType commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup equipment_xsd.tmp#BaseSensorEquipmentType_manufacturer equipment_xsd.tmp#BaseSensorEquipmentType_serialNumber equipment_xsd.tmp#BaseSensorEquipmentType_heightDiffToAntenna equipment_xsd.tmp#BaseSensorEquipmentType_calibrationDate equipment_xsd.tmp#BaseSensorEquipmentType equipment_xsd.tmp#TemperatureSensorType_dataSamplingInterval equipment_xsd.tmp#TemperatureSensorType_accuracy-degreesCelcius equipment_xsd.tmp#TemperatureSensorType_aspiration
Type extension of geo:BaseSensorEquipmentType
Type hierarchy
Used by
Model
Children geo:accuracy-degreesCelcius, geo:aspiration, geo:associatedDocument, geo:calibrationDate, geo:dataSamplingInterval, geo:extension, geo:heightDiffToAntenna, geo:manufacturer, geo:notes, geo:serialNumber, geo:type, validTime
Source

<complexType name="TemperatureSensorType">
  <complexContent>
    <extension base="geo:BaseSensorEquipmentType">
      <sequence>
        <element name="dataSamplingInterval" type="double"/>
        <element name="accuracy-degreesCelcius" type="double"/>
        <element name="aspiration" type="string"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Complex Type geo:waterVaporSensorPropertyType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram equipment_xsd.tmp#WaterVaporSensor commonTypes_xsd.tmp#ChangeTracking_dateInserted commonTypes_xsd.tmp#ChangeTracking_dateDeleted commonTypes_xsd.tmp#ChangeTracking_deletedReason commonTypes_xsd.tmp#ChangeTracking
Used by
Model
Children geo:WaterVaporSensor, geo:dateDeleted, geo:dateInserted, geo:deletedReason
Source

<complexType name="waterVaporSensorPropertyType">
  <sequence>
    <sequence minOccurs="0">
      <element ref="geo:WaterVaporSensor"/>
    </sequence>
    <group ref="geo:ChangeTracking"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Complex Type geo:WaterVaporSensorType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram fieldMeasurement_xsd.tmp#SensorType_type fieldMeasurement_xsd.tmp#SensorType equipment_xsd.tmp#SensorWithCodeType_type equipment_xsd.tmp#SensorWithCodeType commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup equipment_xsd.tmp#BaseSensorEquipmentType_manufacturer equipment_xsd.tmp#BaseSensorEquipmentType_serialNumber equipment_xsd.tmp#BaseSensorEquipmentType_heightDiffToAntenna equipment_xsd.tmp#BaseSensorEquipmentType_calibrationDate equipment_xsd.tmp#BaseSensorEquipmentType equipment_xsd.tmp#WaterVaporSensorType_distanceToAntenna
Type extension of geo:BaseSensorEquipmentType
Type hierarchy
Used by
Model
Children geo:associatedDocument, geo:calibrationDate, geo:distanceToAntenna, geo:extension, geo:heightDiffToAntenna, geo:manufacturer, geo:notes, geo:serialNumber, geo:type, validTime
Source

<complexType name="WaterVaporSensorType">
  <complexContent>
    <extension base="geo:BaseSensorEquipmentType">
      <sequence>
        <element name="distanceToAntenna" type="double"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Complex Type geo:otherInstrumentationPropertyType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram equipment_xsd.tmp#OtherInstrumentation commonTypes_xsd.tmp#ChangeTracking_dateInserted commonTypes_xsd.tmp#ChangeTracking_dateDeleted commonTypes_xsd.tmp#ChangeTracking_deletedReason commonTypes_xsd.tmp#ChangeTracking
Used by
Model
Children geo:OtherInstrumentation, geo:dateDeleted, geo:dateInserted, geo:deletedReason
Source

<complexType name="otherInstrumentationPropertyType">
  <sequence>
    <sequence minOccurs="0">
      <element ref="geo:OtherInstrumentation"/>
    </sequence>
    <group ref="geo:ChangeTracking"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Complex Type geo:OtherInstrumentationType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram commonTypes_xsd.tmp#InstrumentType_type commonTypes_xsd.tmp#RemarksGroup_notes commonTypes_xsd.tmp#RemarksGroup_associatedDocument commonTypes_xsd.tmp#RemarksGroup_extension commonTypes_xsd.tmp#RemarksGroup commonTypes_xsd.tmp#InstrumentType equipment_xsd.tmp#OtherInstrumentationType_instrumentation
Type extension of geo:InstrumentType
Type hierarchy
Used by
Model
Children geo:associatedDocument, geo:extension, geo:instrumentation, geo:notes, geo:type, validTime
Source

<complexType name="OtherInstrumentationType">
  <complexContent>
    <extension base="geo:InstrumentType">
      <sequence>
        <element name="instrumentation" type="string"/>
        <element ref="gml:validTime"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Simple Type geo:antennaReferencePointType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type restriction of string
Facets
enumeration BPA
enumeration BCR
enumeration BGP
enumeration TPA
enumeration TCR
enumeration TGR
Source

<simpleType name="antennaReferencePointType">
  <restriction base="string">
    <enumeration value="BPA"/>
    <enumeration value="BCR"/>
    <enumeration value="BGP"/>
    <enumeration value="TPA"/>
    <enumeration value="TCR"/>
    <enumeration value="TGR"/>
  </restriction>
</simpleType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Simple Type geo:satelliteSystemTypeOfType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type restriction of string
Facets
enumeration n/a
enumeration GPS
enumeration GLONASS
enumeration GPS+GLONASS
Source

<simpleType name="satelliteSystemTypeOfType">
  <restriction base="string">
    <enumeration value="n/a"/>
    <enumeration value="GPS"/>
    <enumeration value="GLONASS"/>
    <enumeration value="GPS+GLONASS"/>
  </restriction>
</simpleType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Simple Type geo:instrumentationTypeOfType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type restriction of string
Facets
enumeration Absolute Gravimeter
enumeration Circumzenithal VUGTK
enumeration DORIS
enumeration DORIS/SLR
enumeration DORIS/SLR/VLBI
enumeration Earth Tide Gravimeter
enumeration GLONASS receiver
enumeration WLRS
enumeration PRARE
enumeration DORIS/SLR/VLBI
enumeration Earth Tide Gravimeter
enumeration GLONASS receiver
enumeration WLRS
enumeration PRARE
enumeration Radio Telescope
enumeration SATREF
enumeration Siesmometer
enumeration SLP
enumeration Satellite Laser Ranging
enumeration SLR/VLBI
enumeration Very Large Baseline Interferometry
enumeration Superconducting Gravimeter
enumeration Transportable Integrated Geodetic Observatory
enumeration Tidal Gravimeter
enumeration Very Broad Band Seismograph
enumeration Campaign Mode GPS
enumeration Continuously Operating GPS
enumeration Transit
enumeration Not Available/unknown
enumeration
Source

<simpleType name="instrumentationTypeOfType">
  <restriction base="string">
    <enumeration value="Absolute Gravimeter"/>
    <enumeration value="Circumzenithal VUGTK"/>
    <enumeration value="DORIS"/>
    <enumeration value="DORIS/SLR"/>
    <enumeration value="DORIS/SLR/VLBI"/>
    <enumeration value="Earth Tide Gravimeter"/>
    <enumeration value="GLONASS receiver"/>
    <enumeration value="WLRS"/>
    <enumeration value="PRARE"/>
    <enumeration value="DORIS/SLR/VLBI"/>
    <enumeration value="Earth Tide Gravimeter"/>
    <enumeration value="GLONASS receiver"/>
    <enumeration value="WLRS"/>
    <enumeration value="PRARE"/>
    <enumeration value="Radio Telescope"/>
    <enumeration value="SATREF"/>
    <enumeration value="Siesmometer"/>
    <enumeration value="SLP"/>
    <enumeration value="Satellite Laser Ranging"/>
    <enumeration value="SLR/VLBI"/>
    <enumeration value="Very Large Baseline Interferometry"/>
    <enumeration value="Superconducting Gravimeter"/>
    <enumeration value="Transportable Integrated Geodetic Observatory"/>
    <enumeration value="Tidal Gravimeter"/>
    <enumeration value="Very Broad Band Seismograph"/>
    <enumeration value="Campaign Mode GPS"/>
    <enumeration value="Continuously Operating GPS"/>
    <enumeration value="Transit"/>
    <enumeration value="Not Available/unknown"/>
    <enumeration value=""/>
  </restriction>
</simpleType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Simple Type geo:statusType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type restriction of string
Facets
enumeration n/a
enumeration ACTIVE
enumeration MOBILE
enumeration PERMANENT
enumeration REMOVED
enumeration
Source

<simpleType name="statusType">
  <restriction base="string">
    <enumeration value="n/a"/>
    <enumeration value="ACTIVE"/>
    <enumeration value="MOBILE"/>
    <enumeration value="PERMANENT"/>
    <enumeration value="REMOVED"/>
    <enumeration value=""/>
  </restriction>
</simpleType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Simple Type geo:standardTypeOfType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram
Type restriction of string
Facets
enumeration none
enumeration H-MASER
enumeration CESIUM
enumeration QUARTZ
enumeration INTERNAL
enumeration RUBIDIUM
enumeration
Source

<simpleType name="standardTypeOfType">
  <restriction base="string">
    <enumeration value="none"/>
    <enumeration value="H-MASER"/>
    <enumeration value="CESIUM"/>
    <enumeration value="QUARTZ"/>
    <enumeration value="INTERNAL"/>
    <enumeration value="RUBIDIUM"/>
    <enumeration value=""/>
  </restriction>
</simpleType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
Complex Type geo:gnssRadomePropertyType
Namespace urn:xml-gov-au:icsm:egeodesy:0.4
Diagram
Diagram equipment_xsd.tmp#GnssRadome commonTypes_xsd.tmp#ChangeTracking_dateInserted commonTypes_xsd.tmp#ChangeTracking_dateDeleted commonTypes_xsd.tmp#ChangeTracking_deletedReason commonTypes_xsd.tmp#ChangeTracking
Model
Children geo:GnssRadome, geo:dateDeleted, geo:dateInserted, geo:deletedReason
Source

<complexType name="gnssRadomePropertyType">
  <sequence>
    <sequence minOccurs="0">
      <element ref="geo:GnssRadome"/>
    </sequence>
    <group ref="geo:ChangeTracking"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
</complexType>
Schema location file:/Users/boss/dev/GeodesyML/schemas/equipment.xsd
XML Schema documentation generated by ® XML Editor.
